Data List Reference Table

DATA LIST REFERENCE TABLE

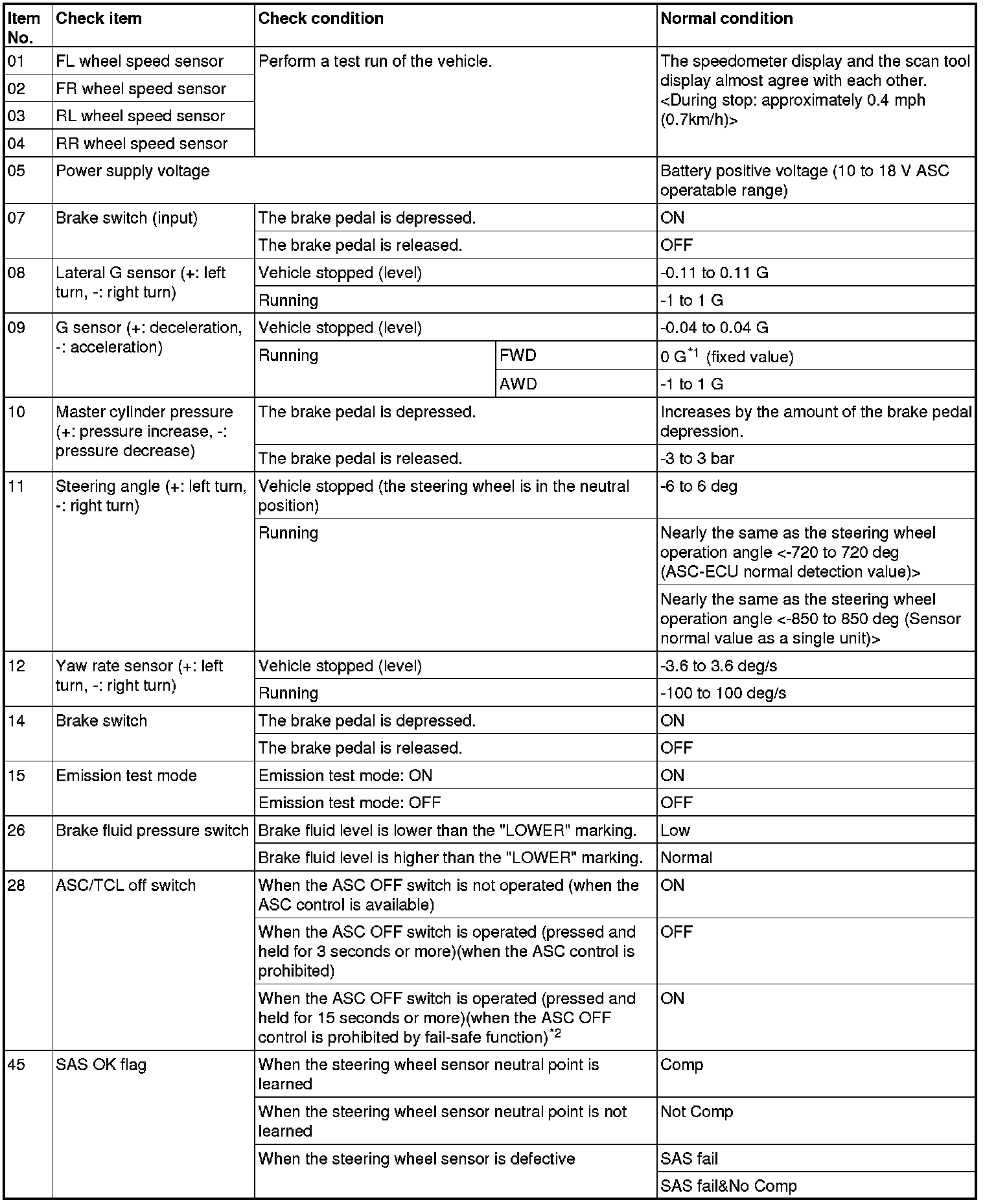

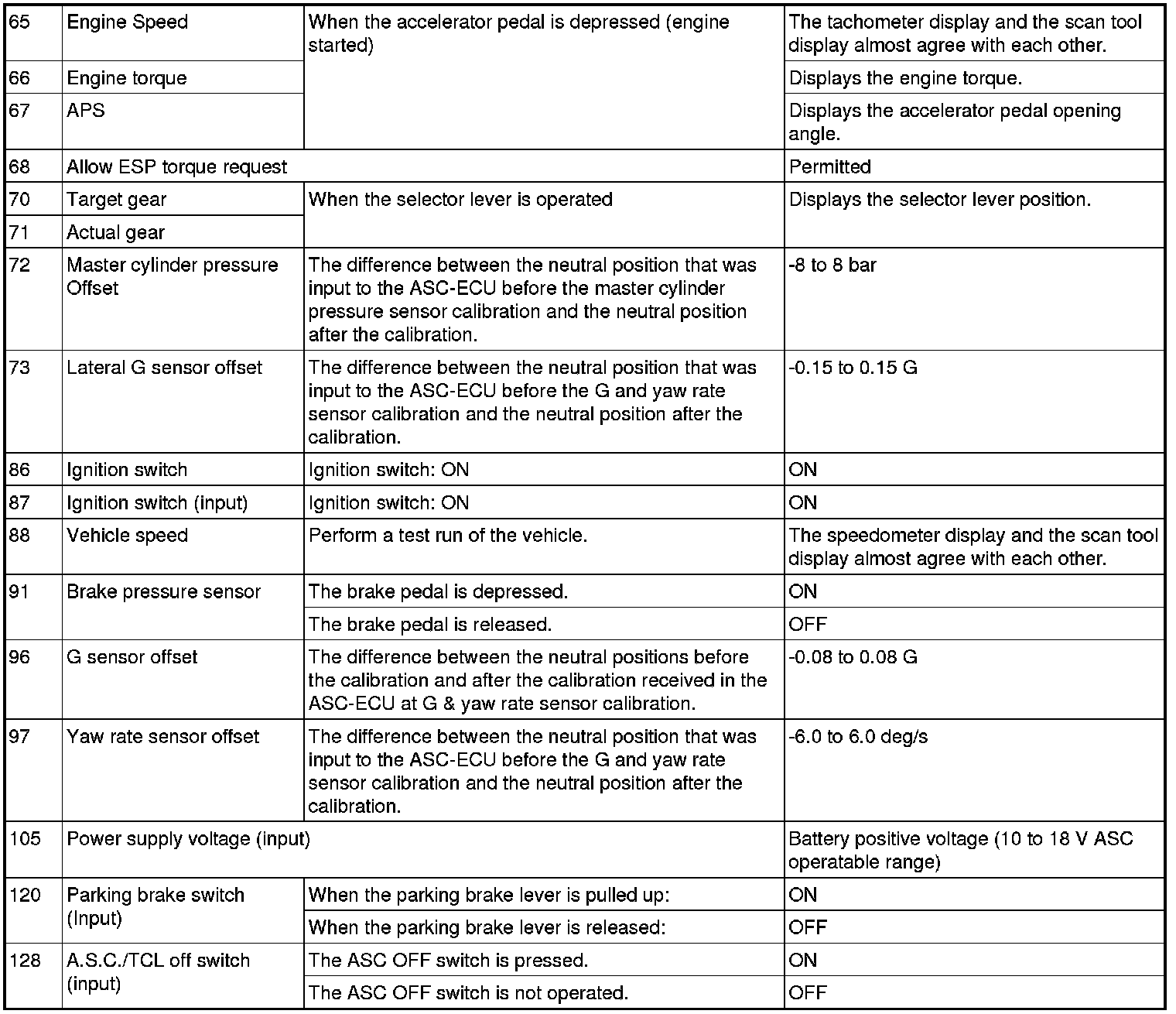

The following items can be read by the scan tool from the ASC-ECU input data.

The following items of ECU input data can be read using scan tool.
1. The system is normal.










NOTE:

- *1: The G and yaw rate sensor does not detect longitudinal acceleration of a vehicle, thus "0 G" is always set.

- *2: When the ASC OFF switch is pressed and held for 15 seconds, the ASC system returns to the ON status.

2. System shutdown by ECU
While ASC-ECU is disabled by the diagnostic function, the scan tool displayed data is different from the actual measurement.
