Data List Reference Table

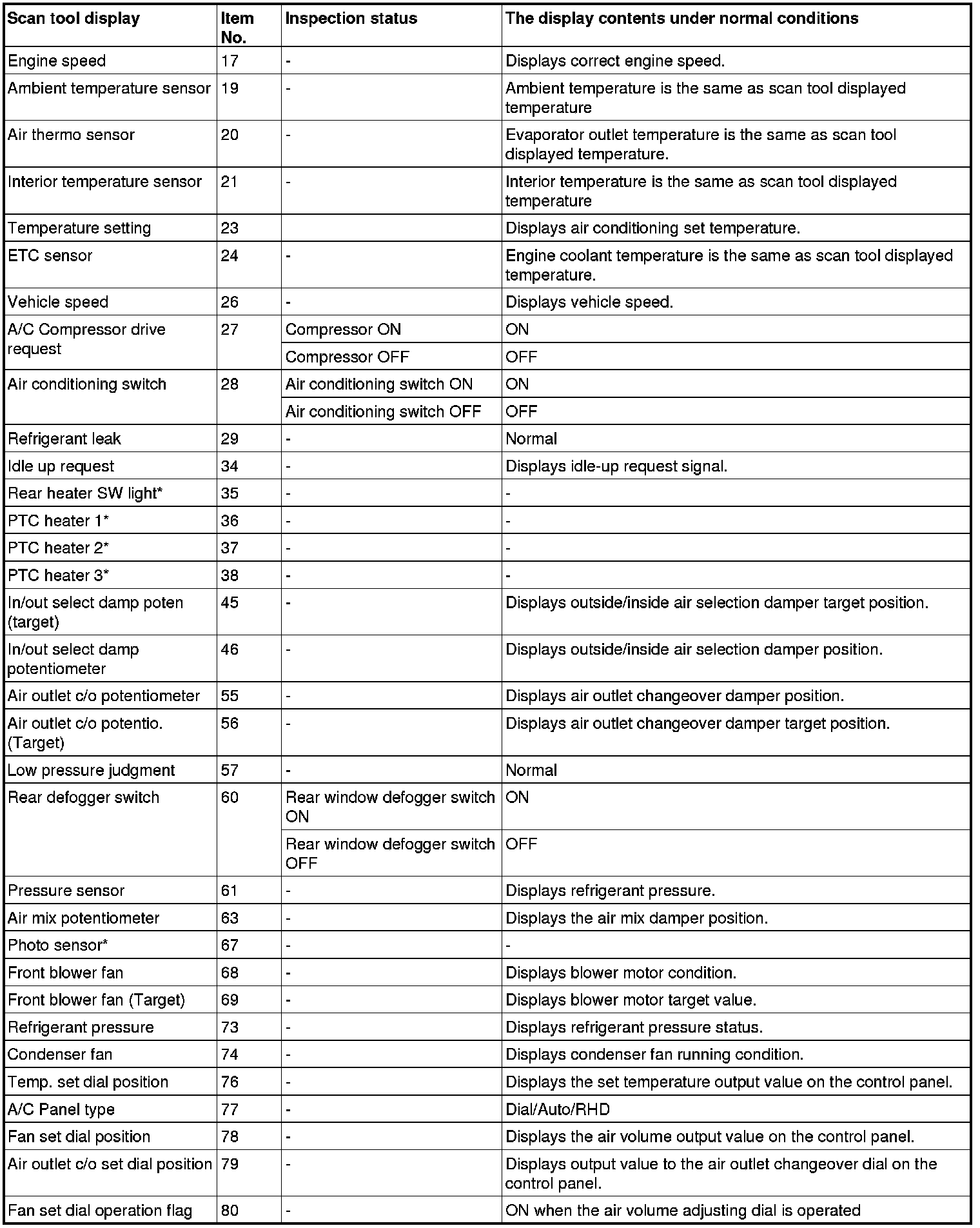

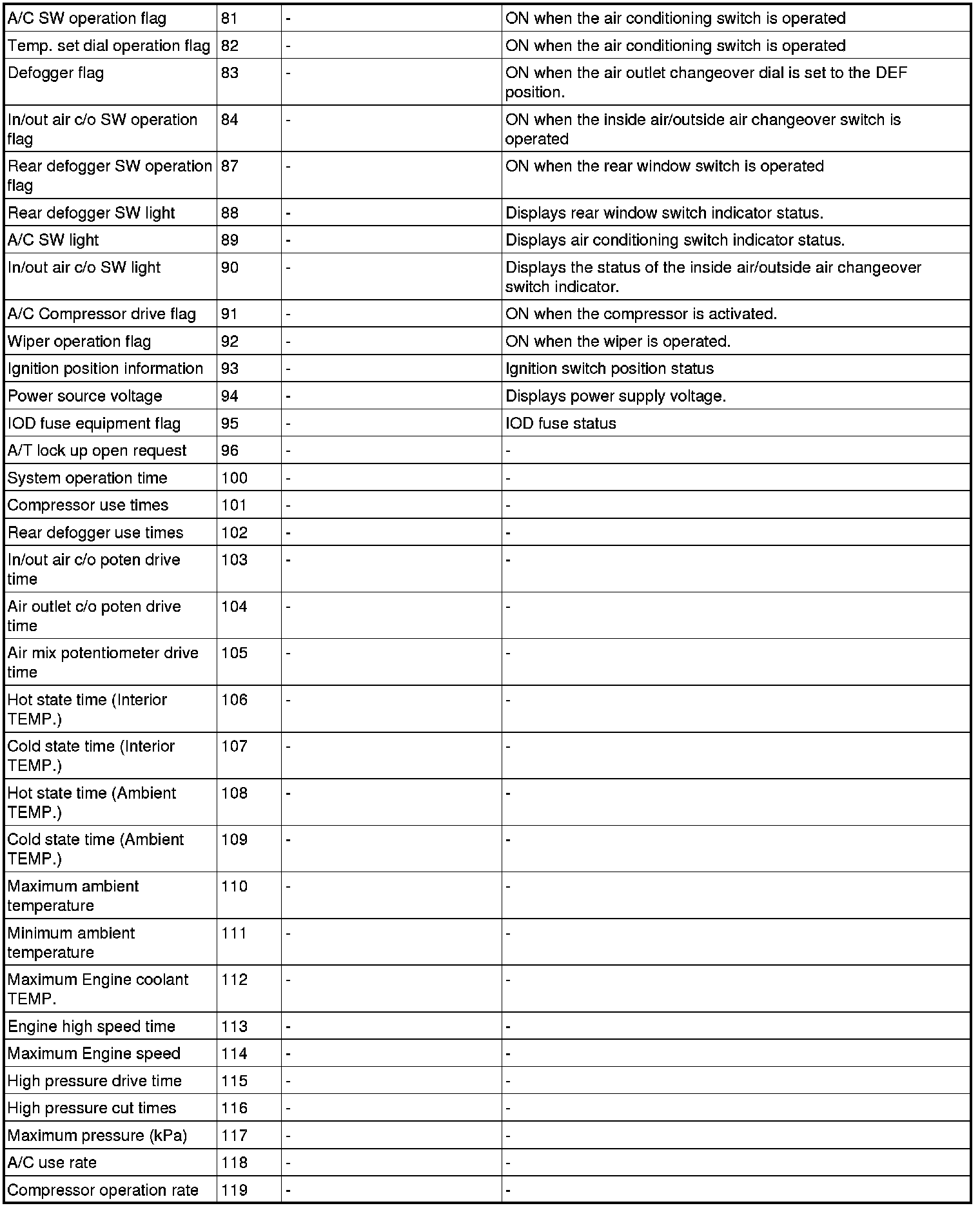

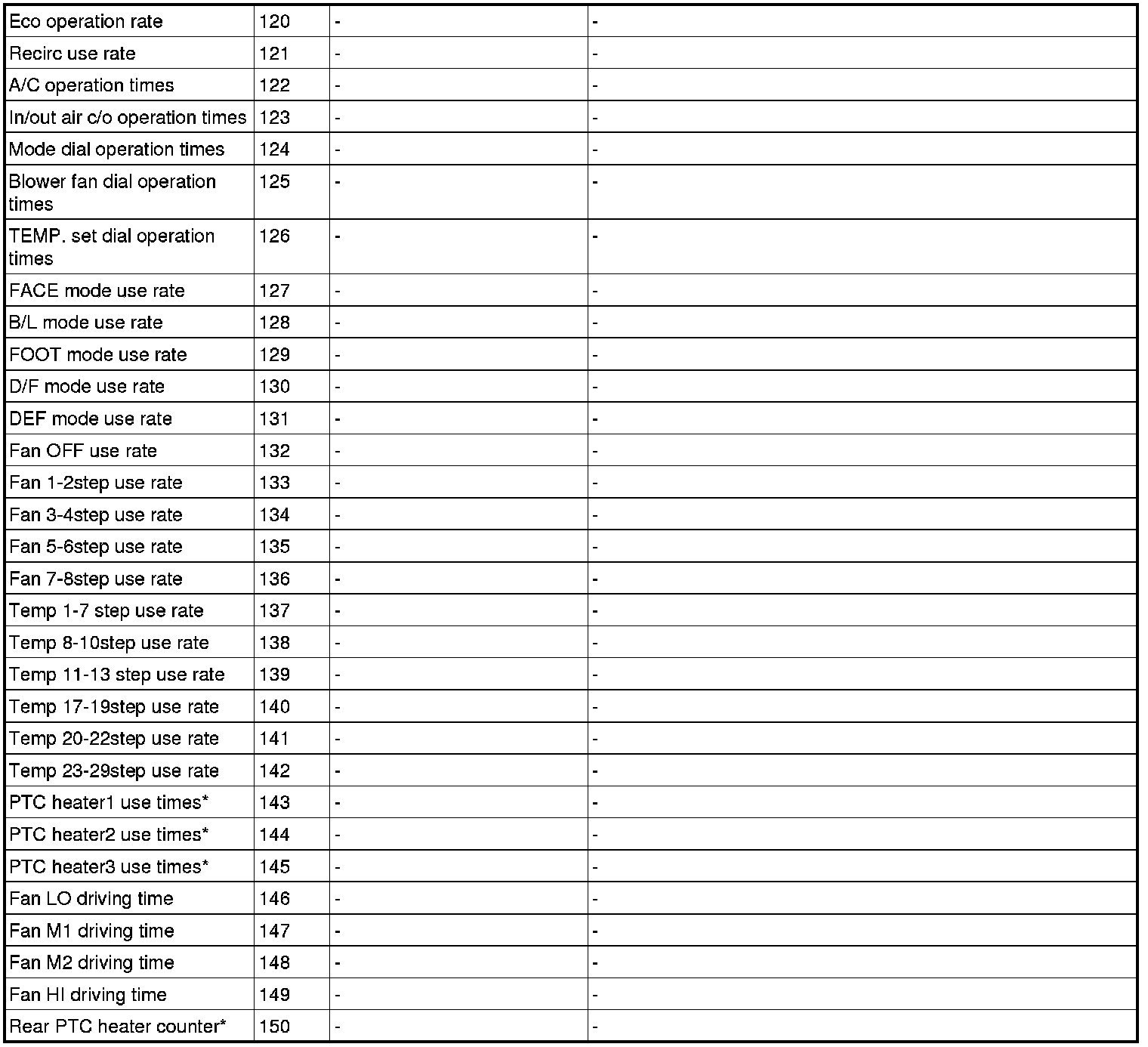

DATA LIST REFERENCE TABLE













NOTE:
* shows that it is displayed but not used.
