Component Tests and General Diagnostics

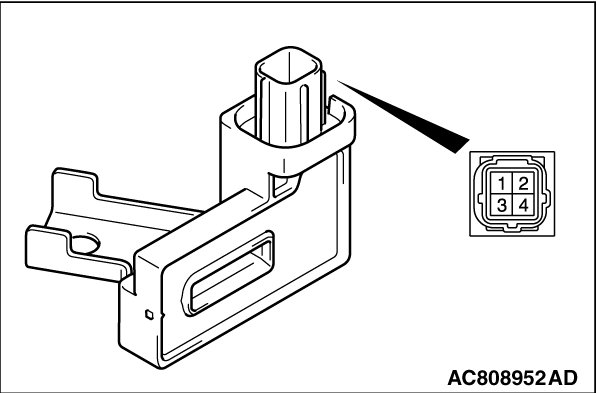

BATTERY CURRENT SENSOR CHECK [EXCEPT RALLIART]

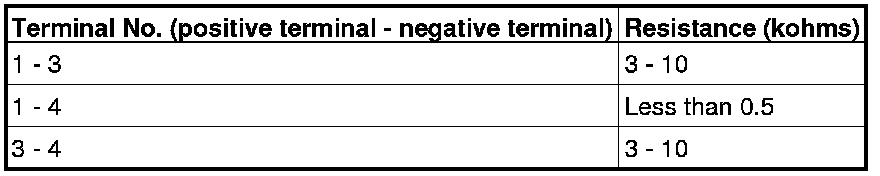

CURRENT SENSOR RESISTANCE VALUE





Use the circuit tester to measure the resistance value between battery current sensor connector terminals.

Standard value:


1.

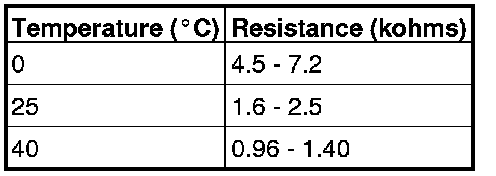

TEMPERATURE SENSOR RESISTANCE VALUE





Using the circuit tester, measure the resistance value between the battery current sensor connector terminal No. 2 and No. 3.

Standard value:


1.
