CAN Bus Diagnostics Chart

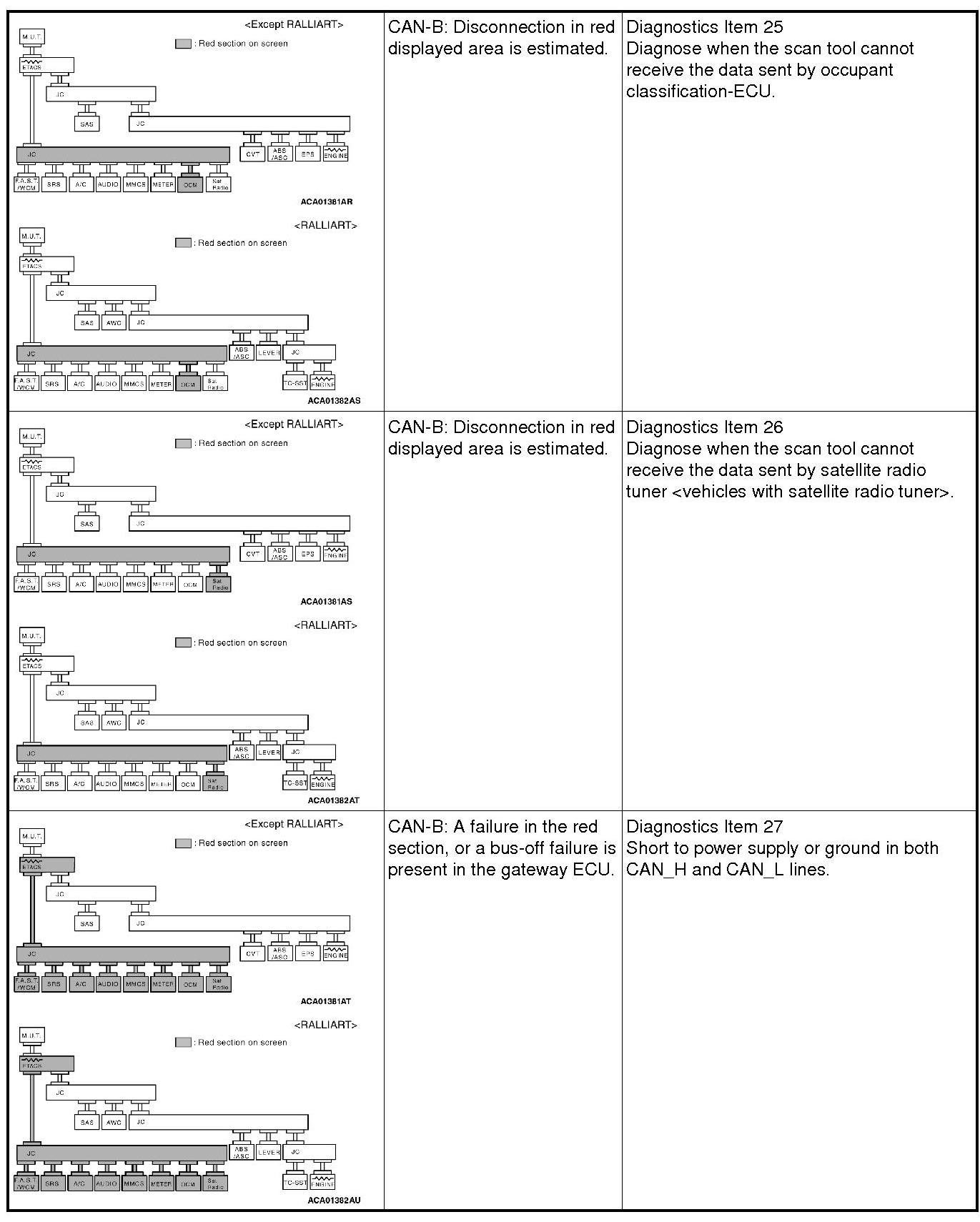

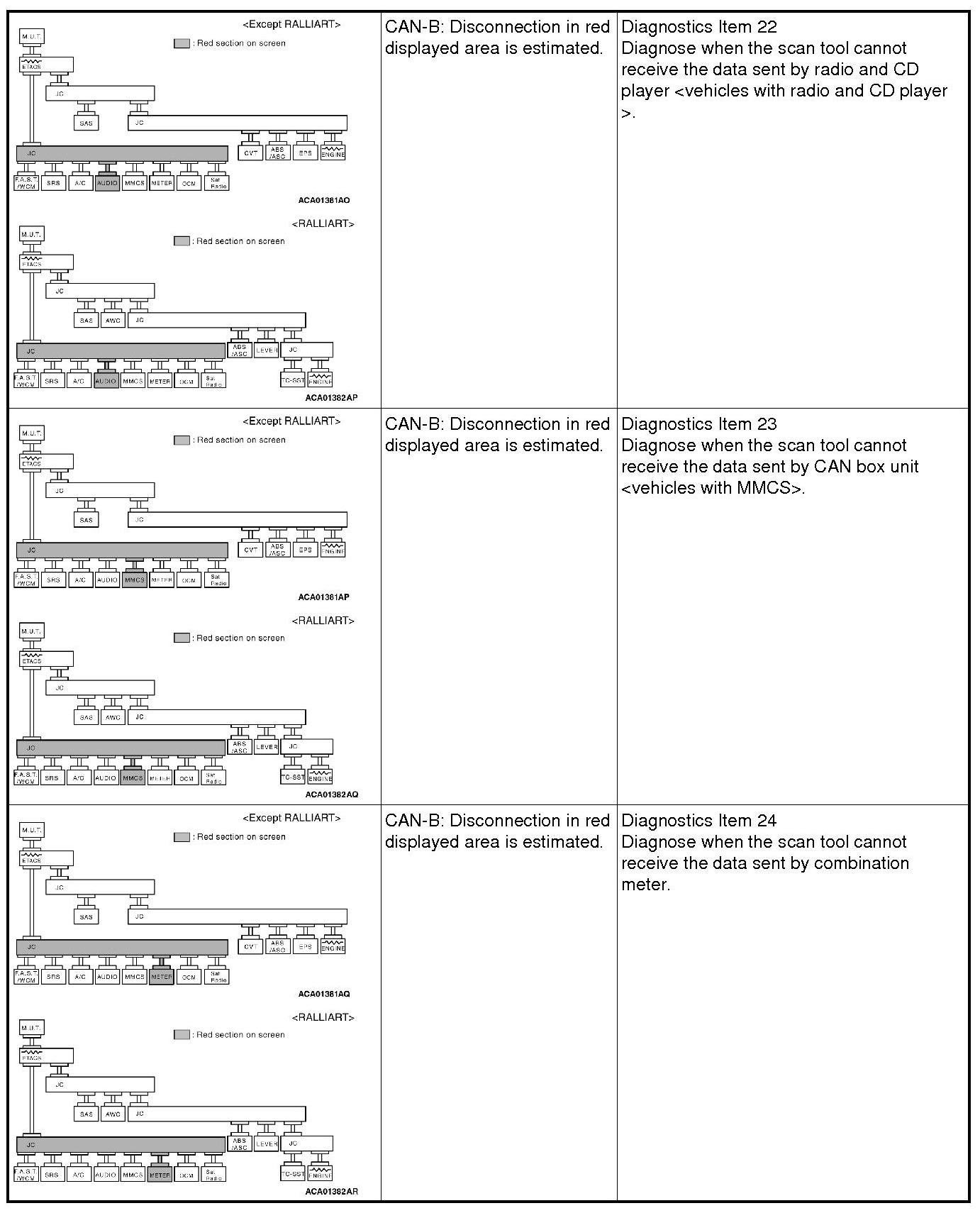

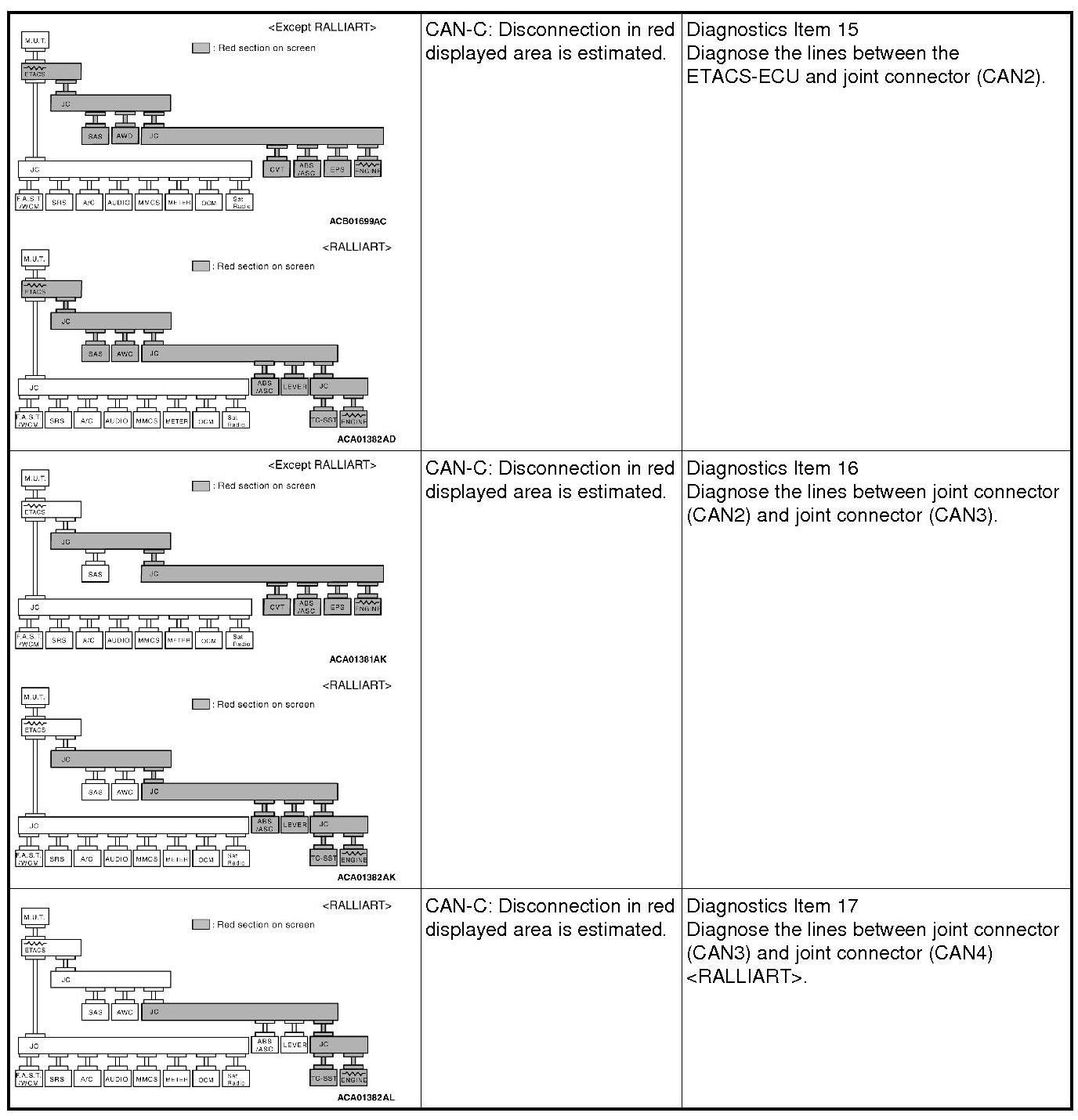

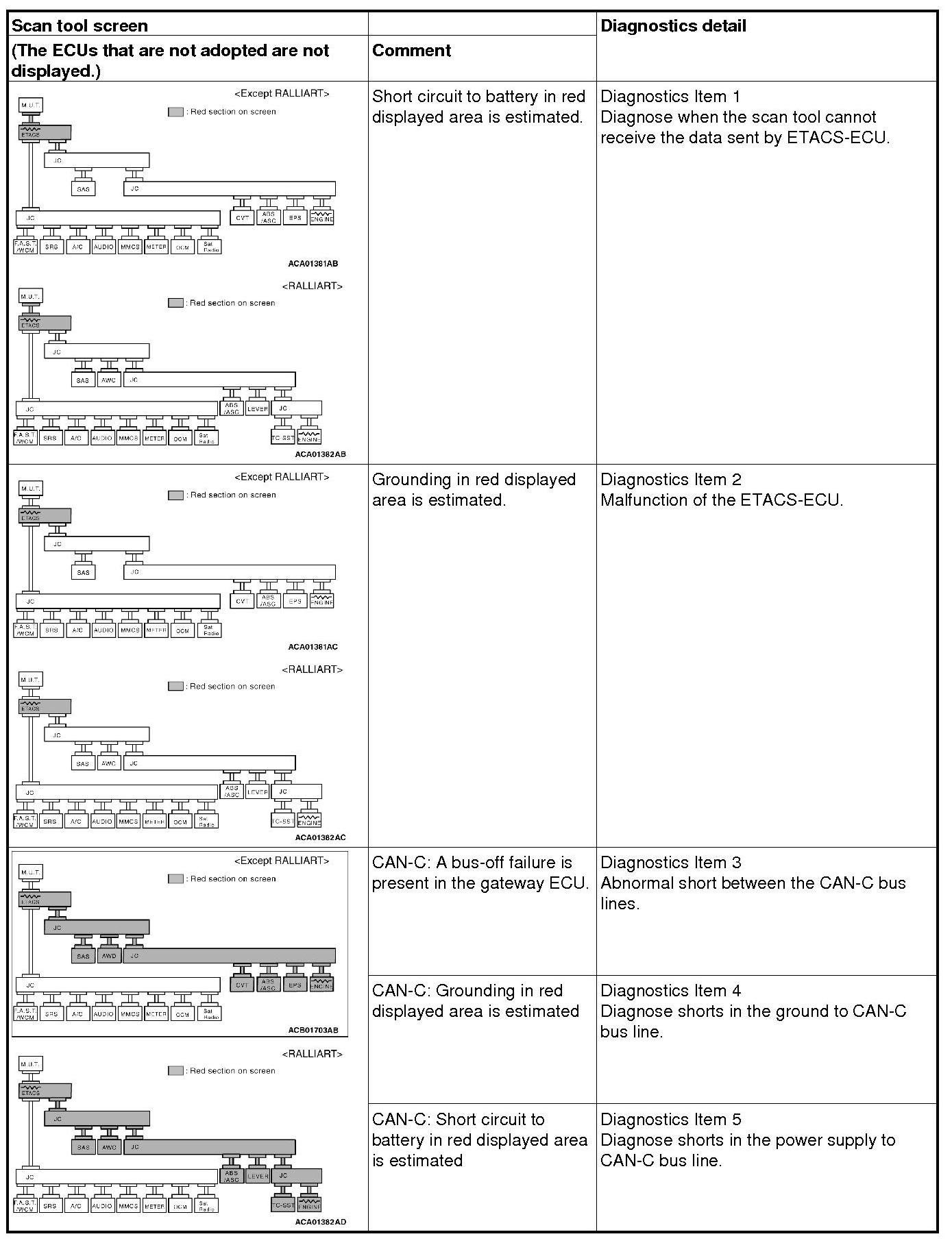

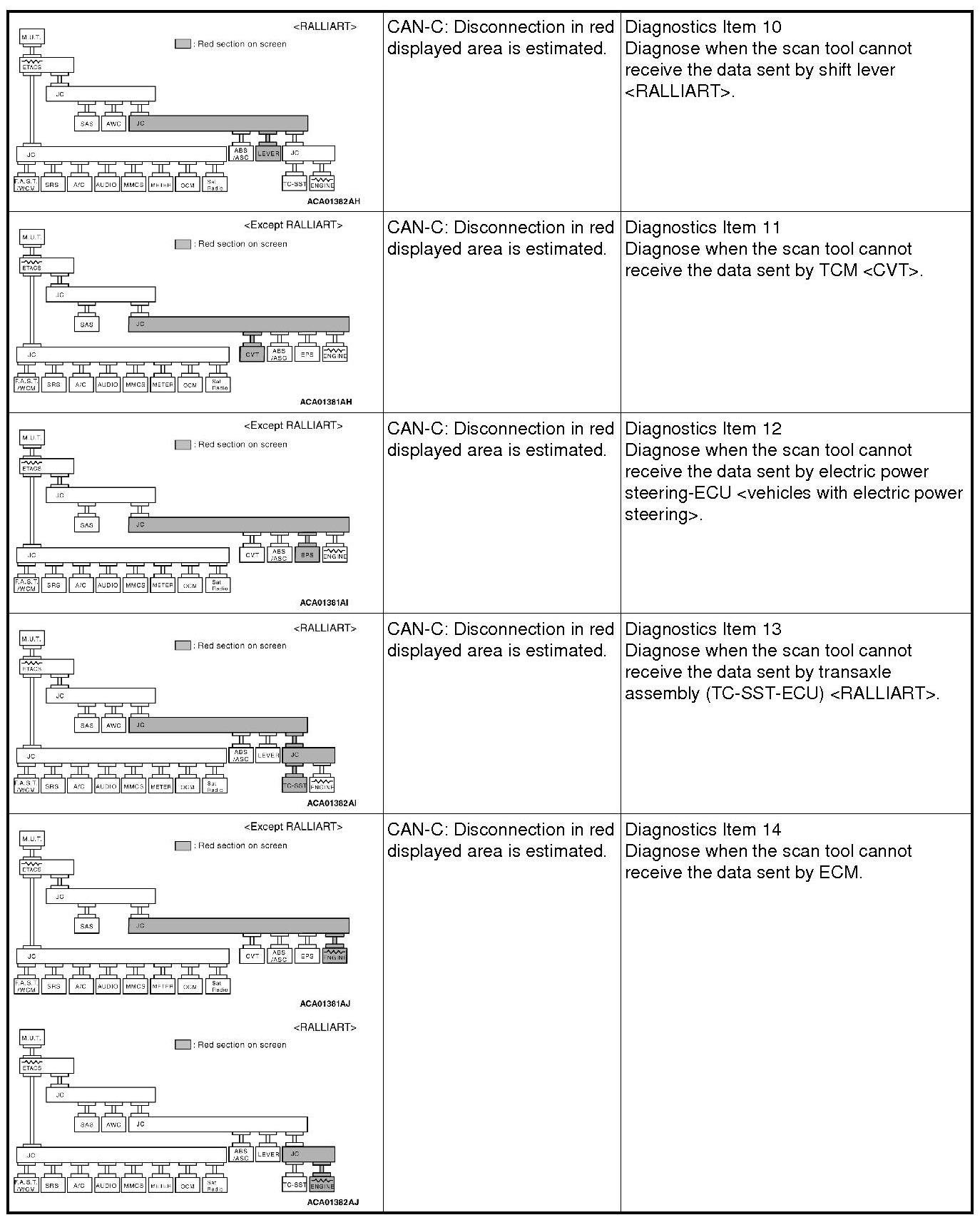

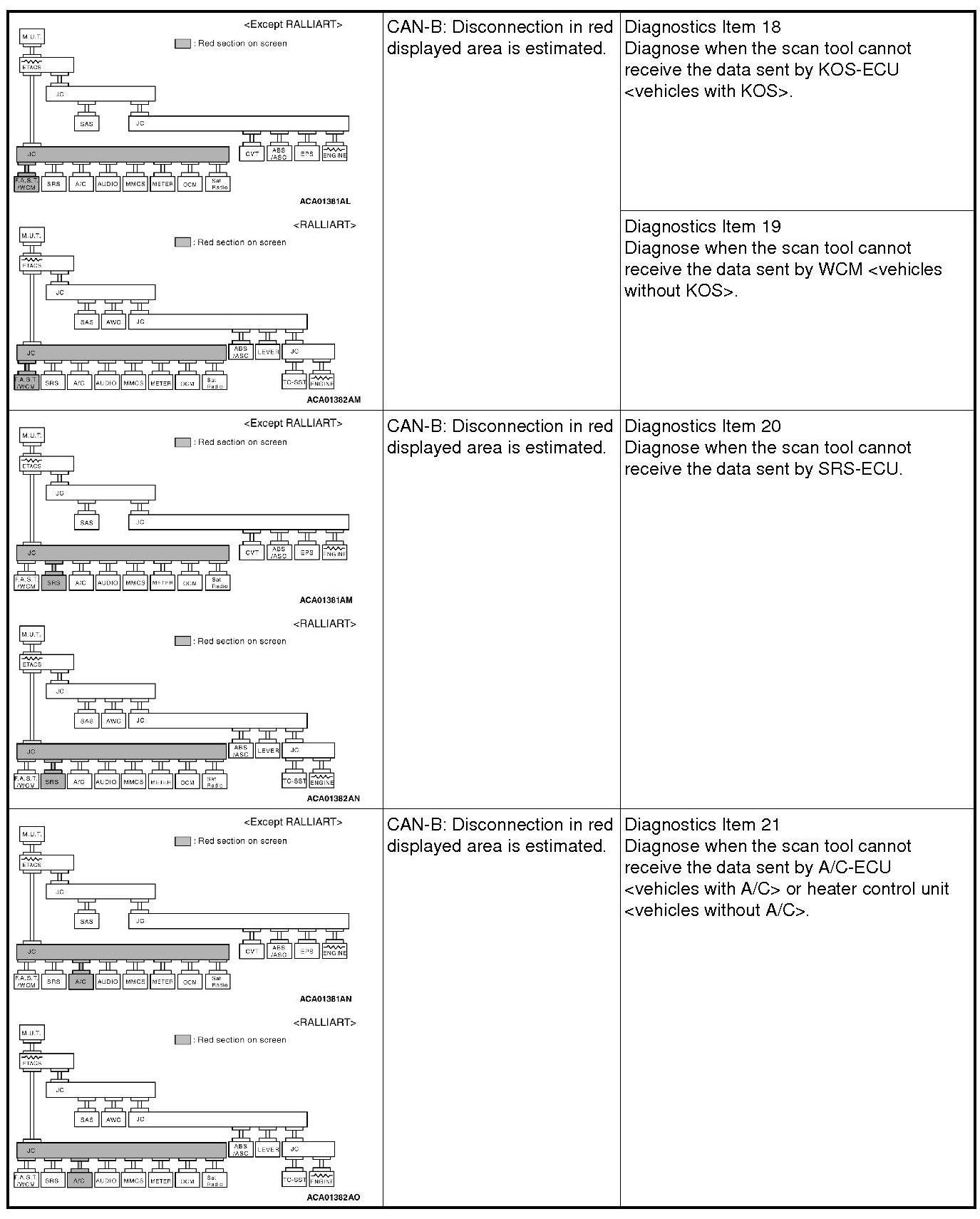

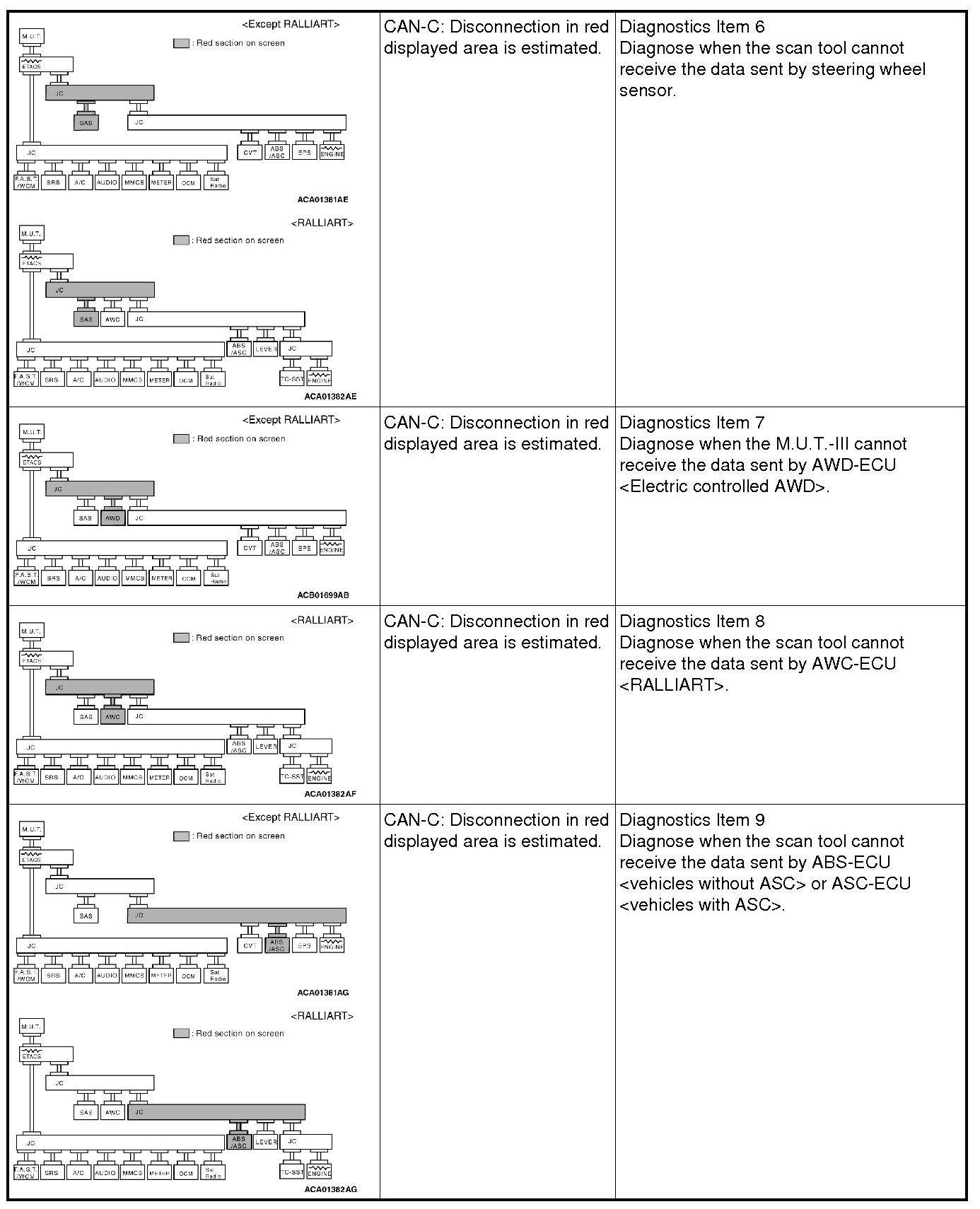

CAN BUS DIAGNOSTICS TABLE

CAUTION:

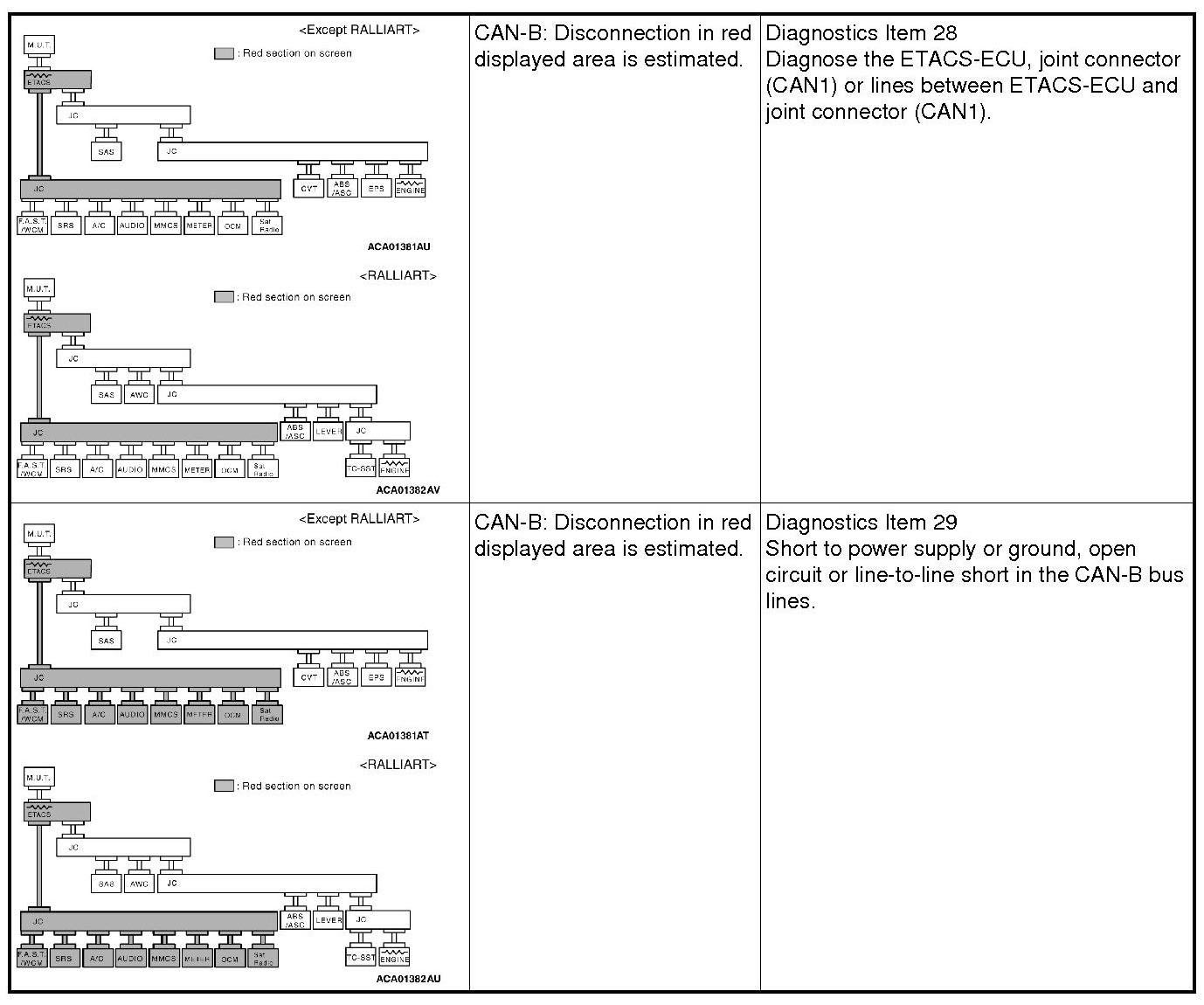

A diagnosis code may not also be set in the CAN-B lines under the conditions below. If no diagnosis code has been set due to electrical noise, confirm diagnosis item 28 Diagnostics Item 28.

- Open circuit at the CAN_H side of the CAN-B bus lines

- Open circuit at the CAN_L side of the CAN-B bus line

- Short to ground at the CAN_H side of the CAN-B bus line

CAUTION:
During diagnosis, a diagnosis code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. After completing the repair, confirm all systems for diagnosis code(s). If diagnosis code(s) are set, erase them all.

This diagnosis applies only to the CAN bus lines. If a different system is defective, proceed to the applicable diagnosis section for each system. Observe the diagnosis procedure below only when the CAN bus line is defective.
