Fail-Safe Function/Backup Function

FAIL-SAFE FUNCTION/BACKUP FUNCTION

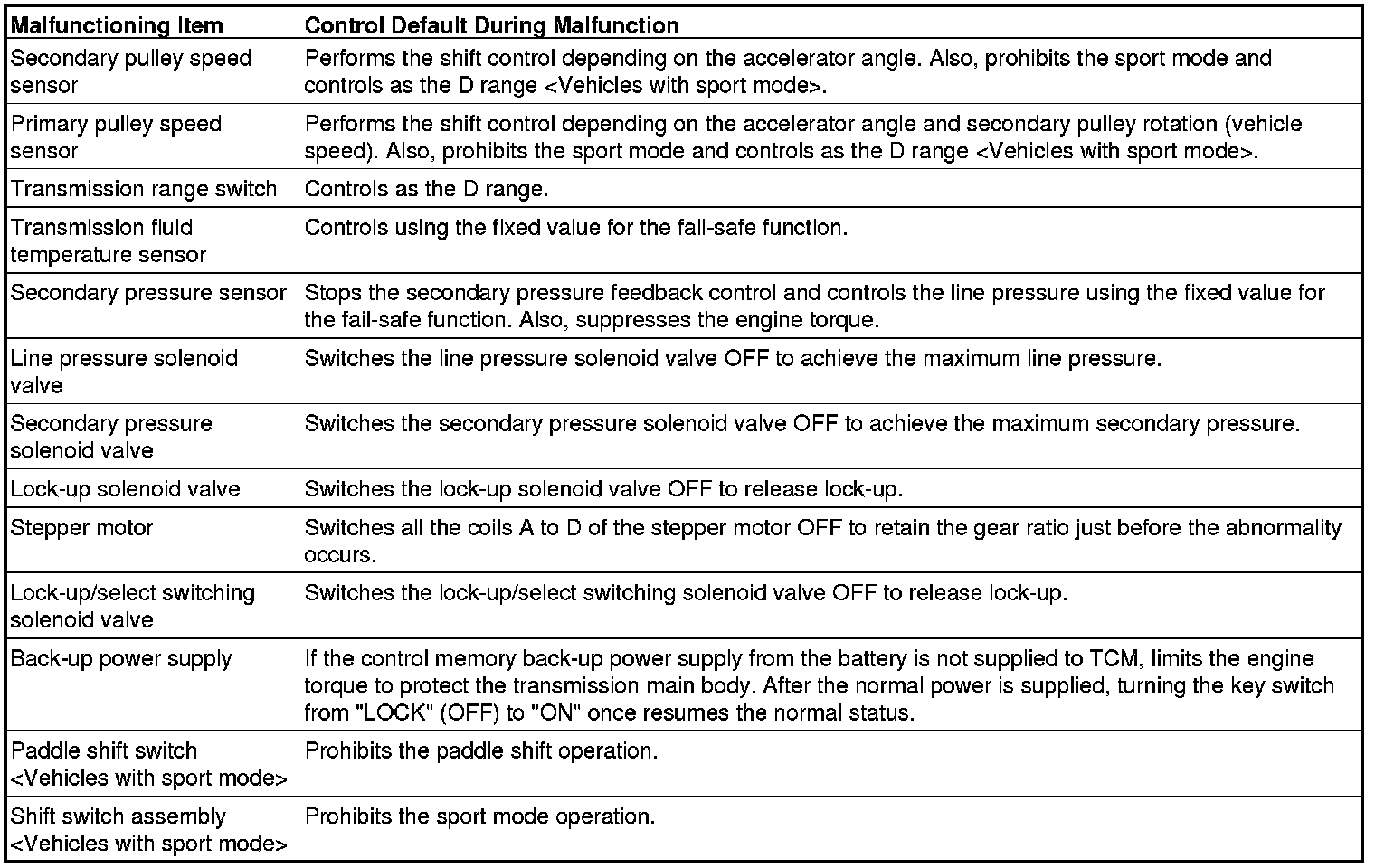

If abnormality occurs in signals from various sensors, switches, or solenoids, this function allows controlling them with the minimum adverse effect to the driving performance. The following shows the fail-safe controls when an abnormal signal is input to TCM from each sensor.
