CVT Fluid Pressure Control Learning Procedure




LEARNING PROCEDURE FOR CVT HYDRAULIC CONTROL

PURPOSE

After initialization, the TCM does not have any learned value. This may degrade the shifting operation quality. The learning procedure is described below.

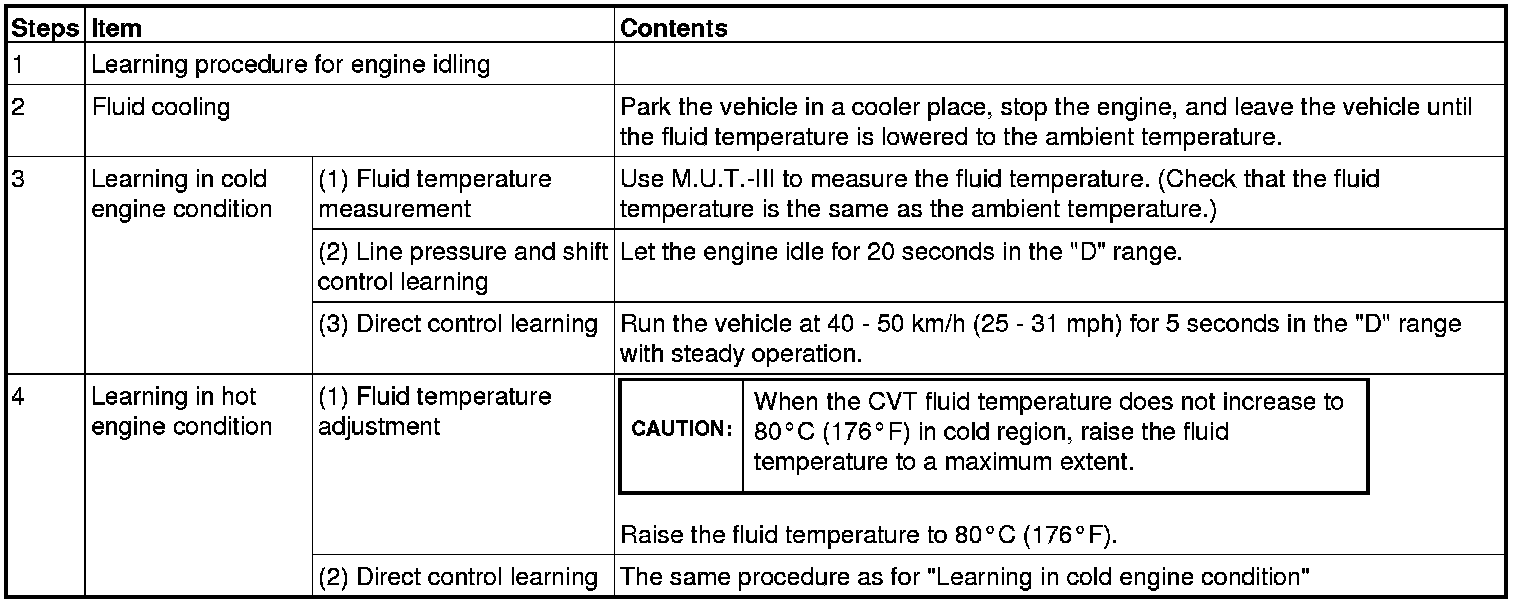

LEARNING PROCEDURES
