Transmission Control System Relay: Testing and Inspection

CVT CONTROL RELAY CHECK

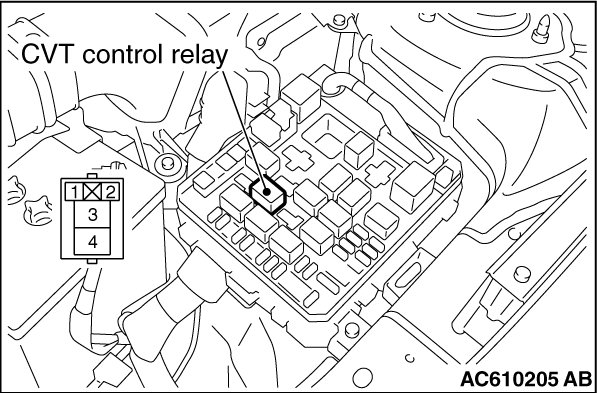

1. Remove the CVT control relay.

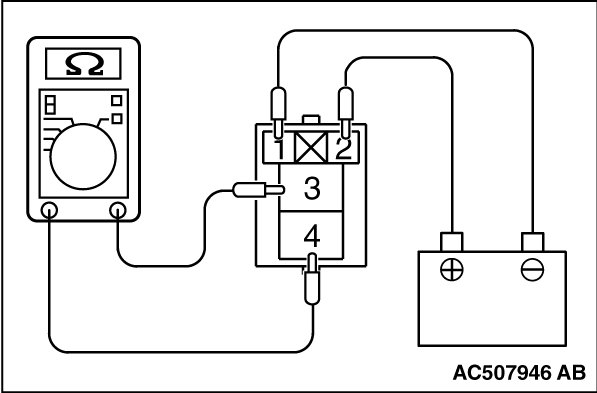

2. Use a jumper wire to connect the positive battery terminal (+) to the CVT control relay terminal No.2, and the negative battery terminal (-) to the terminal No.1.

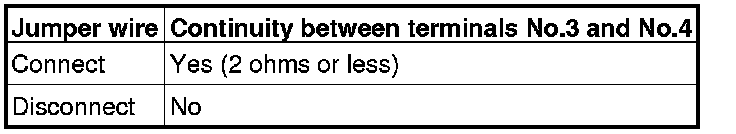

3. Check for continuity between the CVT control relay terminals No.3 and No.4.





4. If not as specified, replace the CVT control relay.
