Data List Reference Table

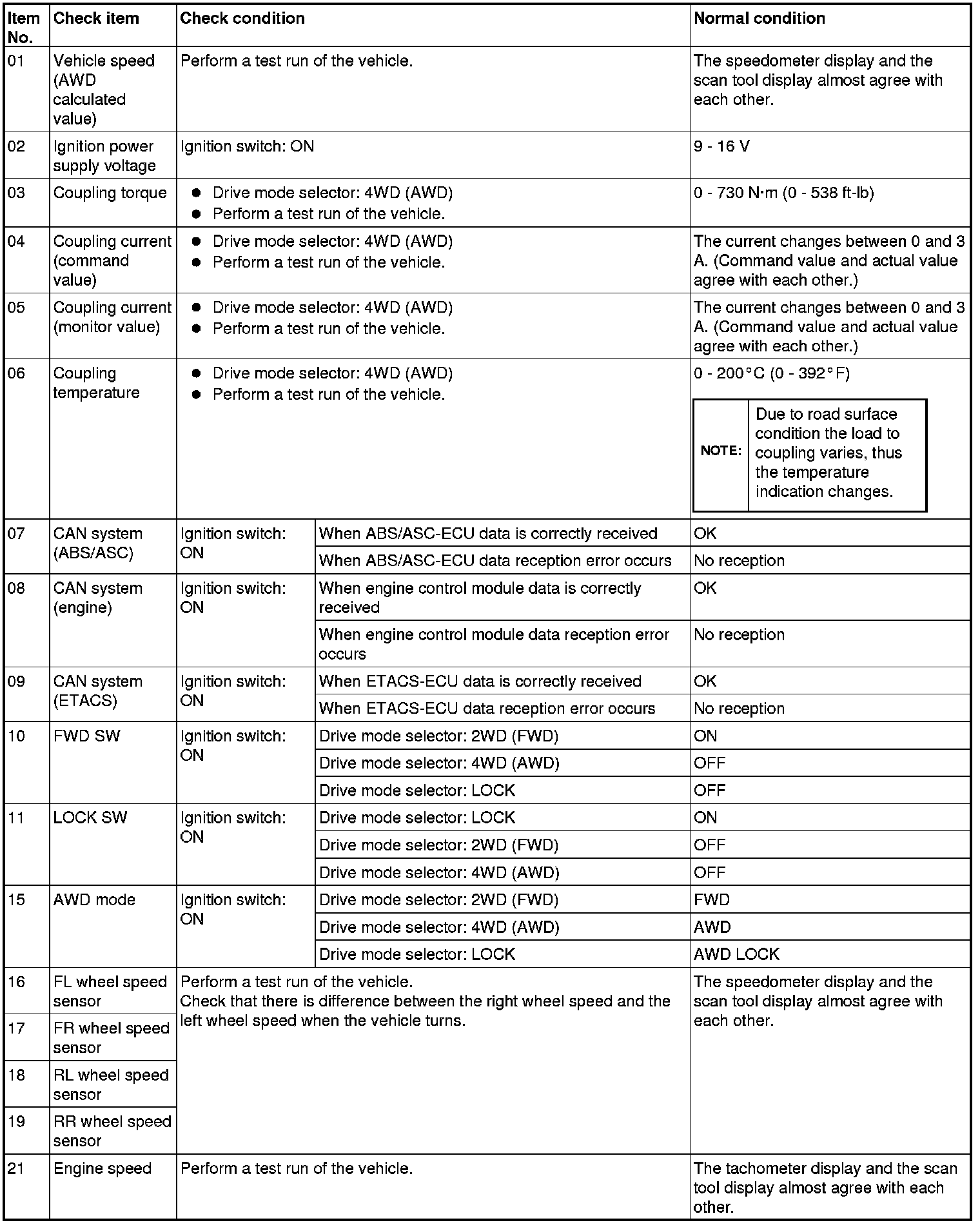

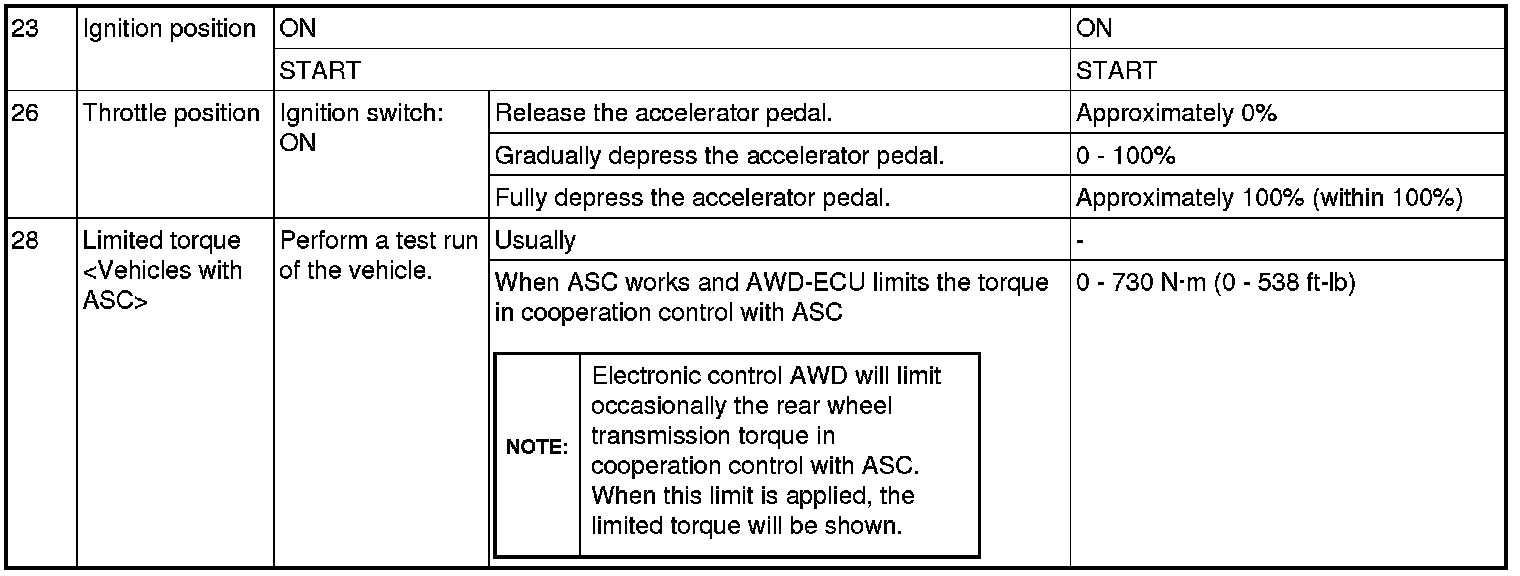

DATA LIST REFERENCE TABLE

Scan tool can read the following items among various control data (input data from each ECU and switch) used by the electronic control AWD system.

SYSTEM IS NORMAL.









SYSTEM SHUT-DOWN

Scan tool display data does not agree with the actual data when AWD-ECU deactivates the AWD control function by the fail-safe function.
