>> G << Synchronizer Ring Assembly / Synchromesh Shifting Key Spring No. 3 (A) / Synchromesh Shifting Key Spring No. 3 (B) And Synchronizer Hub No. 3 Installation

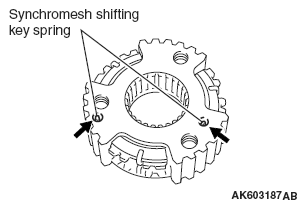

Fig 1: Identifying Rotation Stops Of Key Springs Positions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Install the synchromesh shifting key springs No. 3 onto the synchronizer ring assembly holding the claws and rotation stops of the key springs in the illustrated positions.
   Fig 2: Locating Synchromesh Shifting Key Spring Mating Holes

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Make sure that the rotation stops of the synchromesh shifting key springs No. 3 fit into the mating holes in the synchronizer ring assembly.
   Fig 3: Compressing Key Spring

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Compress the key springs into place inside the hub as shown in the illustration.
   Fig 4: Installing Special Tool MB992220 Until It Hits End Face Of Input Shaft

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Install special tool MB992220 until it hits the end face of the input shaft.
   Fig 5: Identifying Special Tool MB992216 On Top Of Synchronizer Hub

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Set special tool MB992216 on top of the synchronizer hub No. 3.
   Fig 6: Installing Center Bolt

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Install the center bolt that is a part of the set of special tool MB992216 as shown in the illustration.
   Fig 7: Pressing To Fit Synchronizer Hub No. 3

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Press-fit the synchronizer hub No. 3 as shown in the illustration.
