Lubrication Points

WARNING: This page is about a different variant/trim than selected.

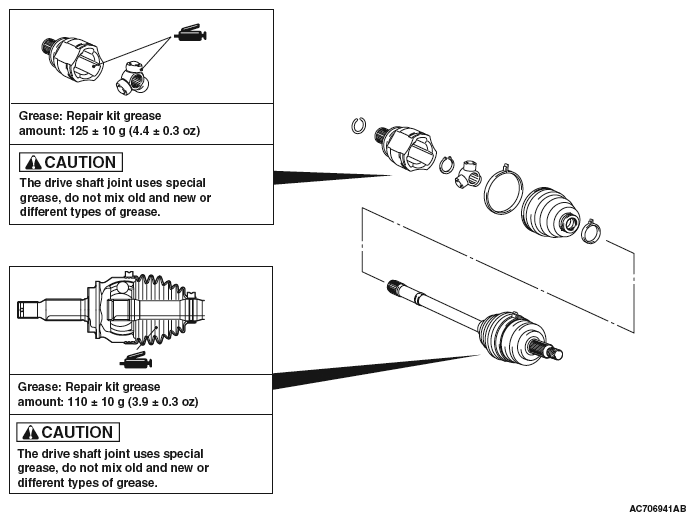

Fig 1: Grease Applying Area
G05394441Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
