Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.

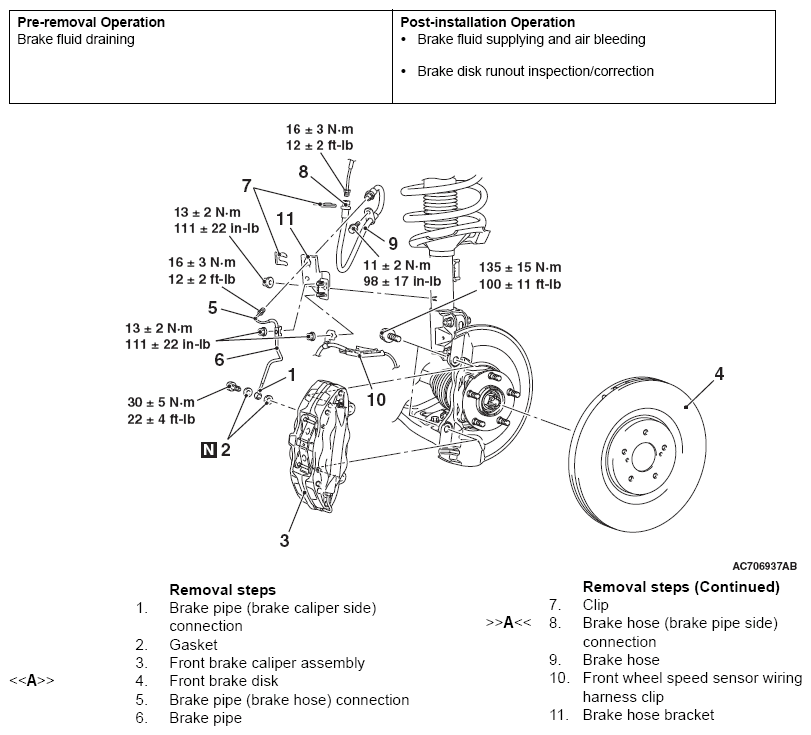

Fig 1: Removal/Installation Of Front Disc Brake Assembly With Torque Specifications
G06677683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
