DTC U1006: Theft-Alarm Siren LIN Timeout: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

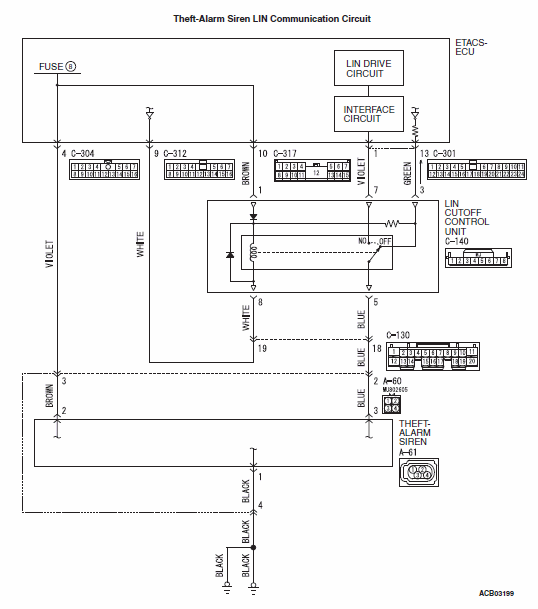

Fig 1: Theft-Alarm Siren LIN Communication Circuit Diagram
G00528498Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Locating Theft-Alarm Siren Connectors
G00528499Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
