Inspection Procedure 8: The Trunk Is Not Opened When The Keyless Entry Transmitter "TRUNK" Button Is Operated: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

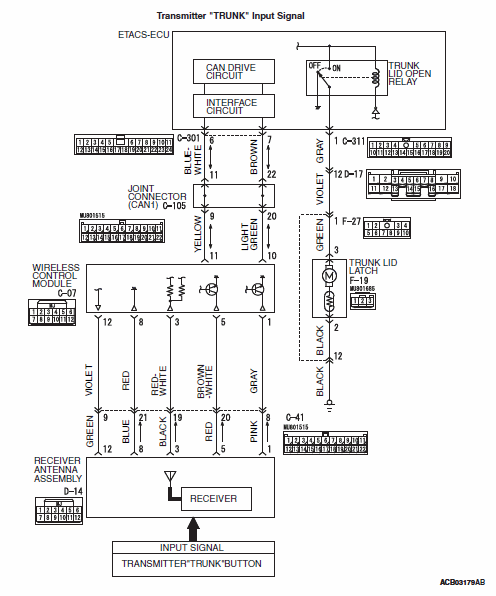

Fig 1: Transmitter "TRUNK" Input Signal Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

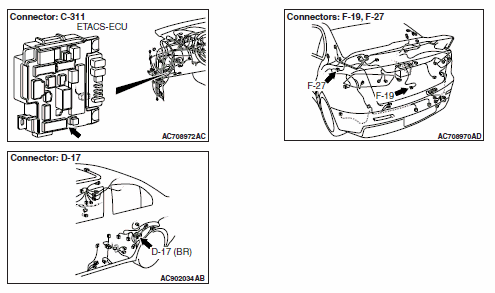

Fig 2: Locating Transmitter "TRUNK" Input Signal Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
