DTC 15: Cruise Control Switch System: Notes

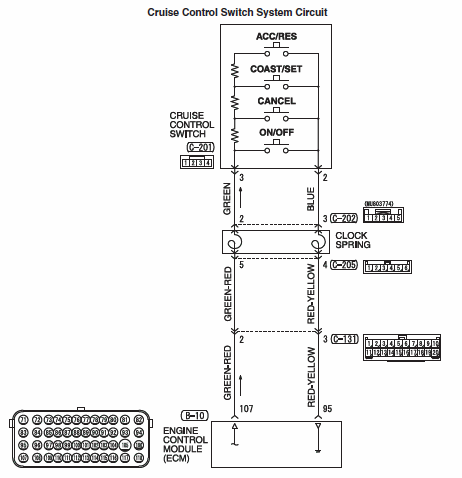

Fig 1: Cruise Control Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Connector B-10

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Connector C-131

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Locating Connectors C-201, C-202 & C-205

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
