Inspection Procedure 6: DIAGNOSIS MODE Cannot Be Made An Entry - Mobile Phone Item Is Not Displayed On The INFOR Screen Of MMCS < Vehicles With MMCS >: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

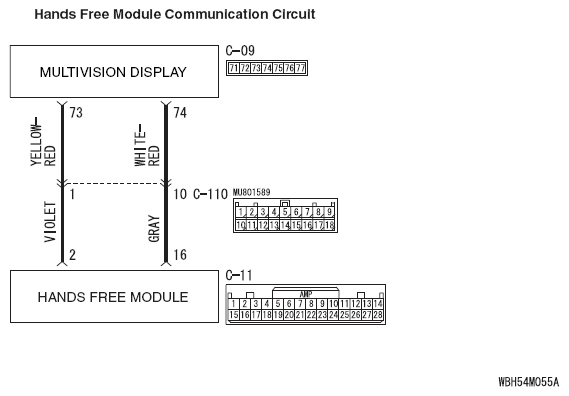

Fig 1: Hands Free Module Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

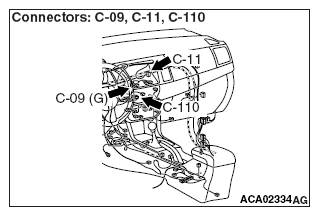

Fig 2: Locating Connectors C-09, C-11, C-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
