Driver's Air Bag Module And Clock Spring

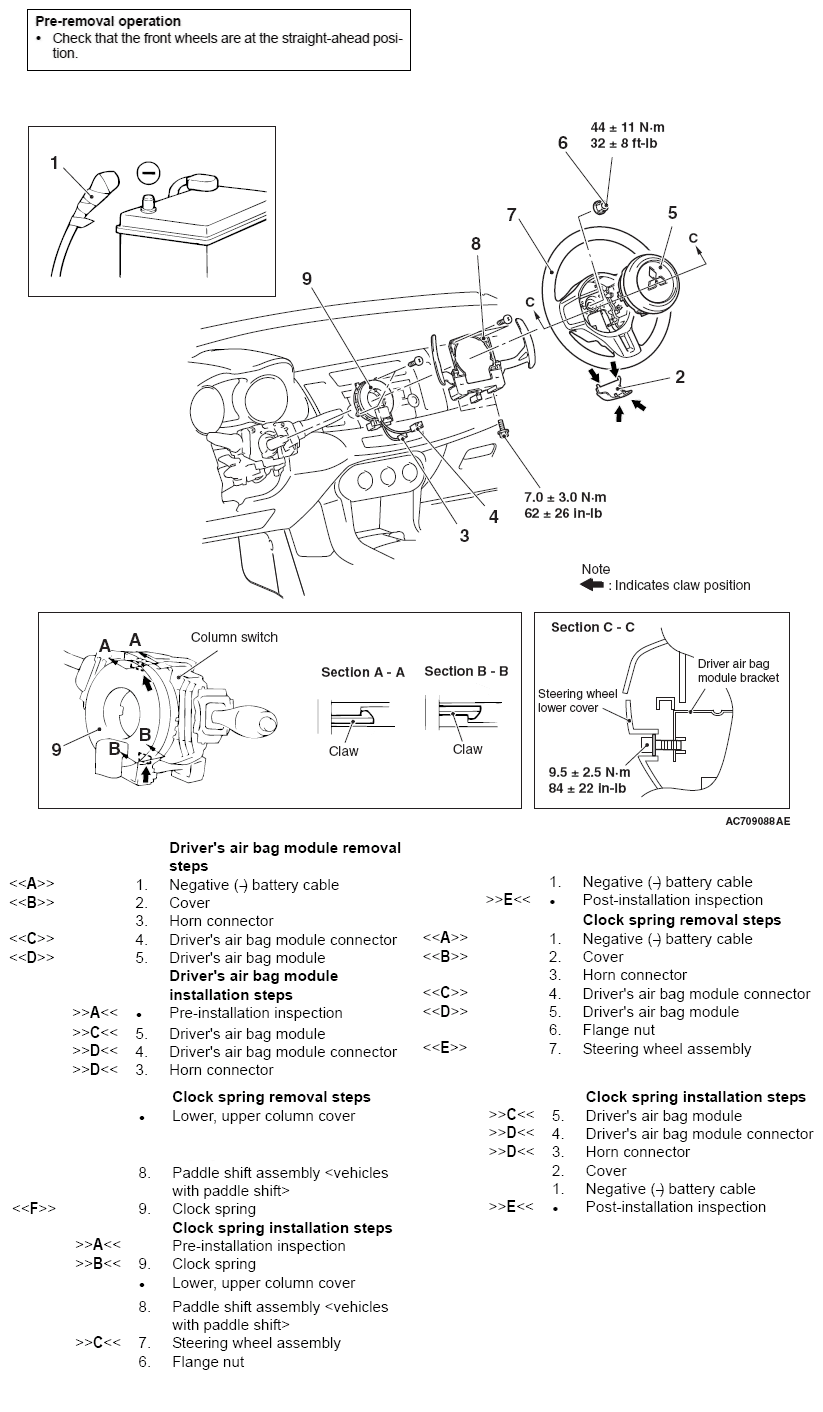

Fig 1: Driver's Air Bag Module & Clock Spring Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990803: Steering Wheel Puller
• MB991958 Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824:Vehicle Communication Interface (V.C.I.)
  • MB991827:M.U.T.-III USB Cable
  • MB991910:M.U.T.-III Main Harness A
• MB992006: Extra Fine Probe
