Disassembly And Assembly: Notes

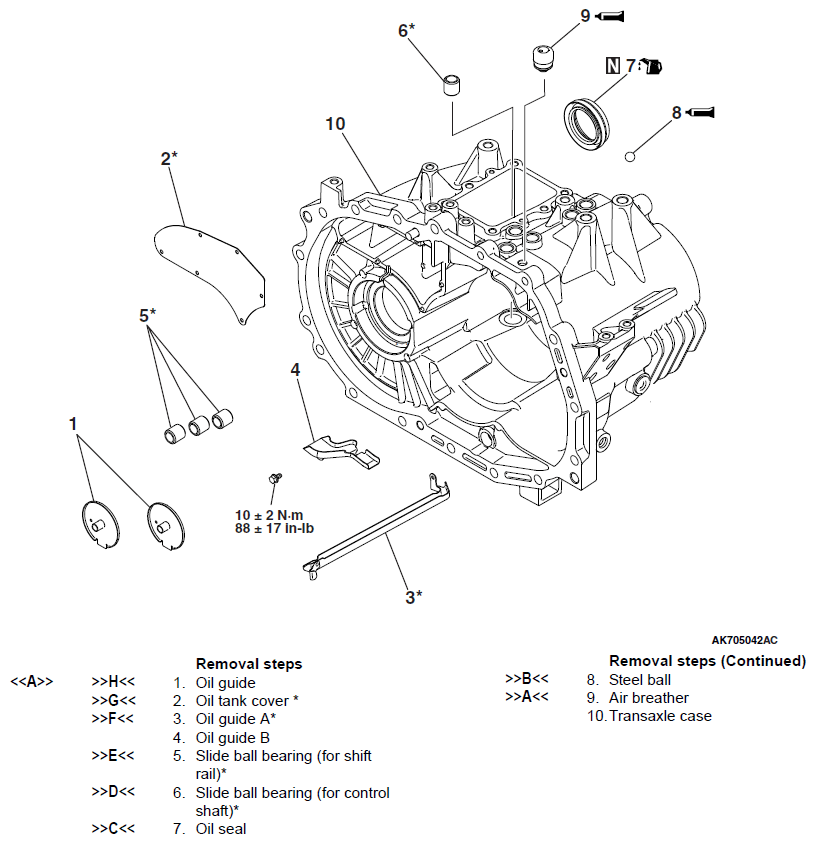

Fig 1: Exploded View Of Transaxle Case With Torque Specifications
G06677043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: *: Refer to the assembly service points only when the transaxle case is replaced.

Required Special Tools:
