>>D<< Spring Pin Installation

Install the spring pin to the shift rail so that the slit of the spring pin aligns with the center axis of the rail as shown in illustration.

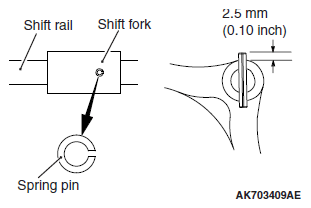

Fig 1: Spring Pin Installation Position
G06676957Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
