Disassembly And Assembly: Notes

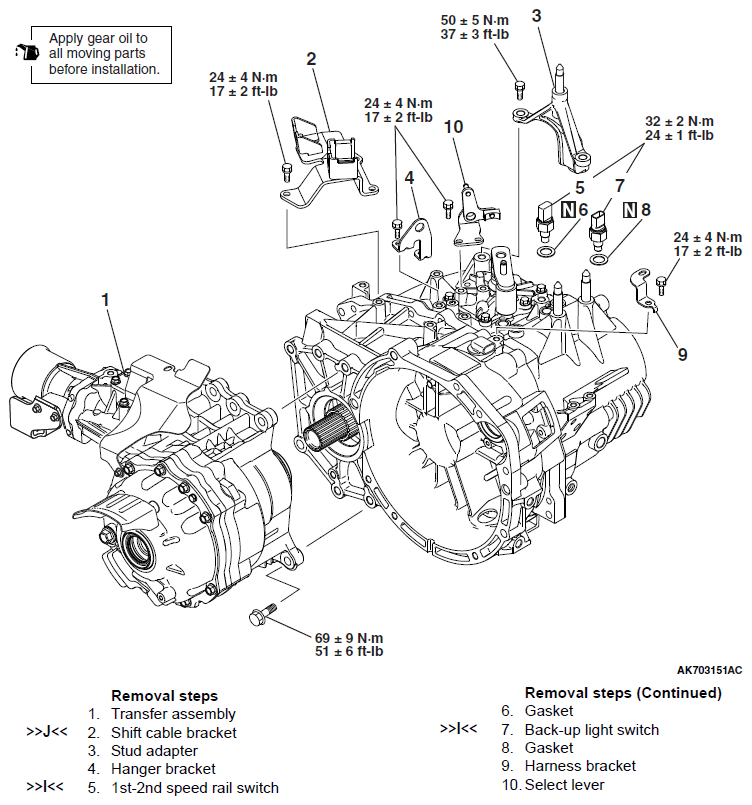

Fig 1: Exploded View Of Transaxle Components With Torque Specifications (1 Of 3)
G06676946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

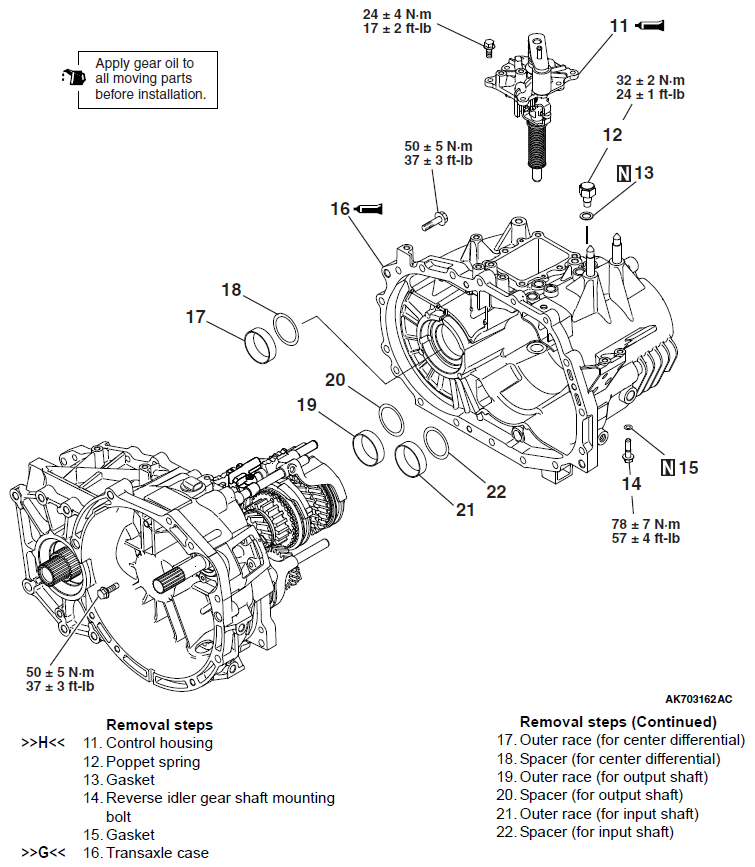

Fig 2: Exploded View Of Transaxle Components With Torque Specifications (2 Of 3)
G06676947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

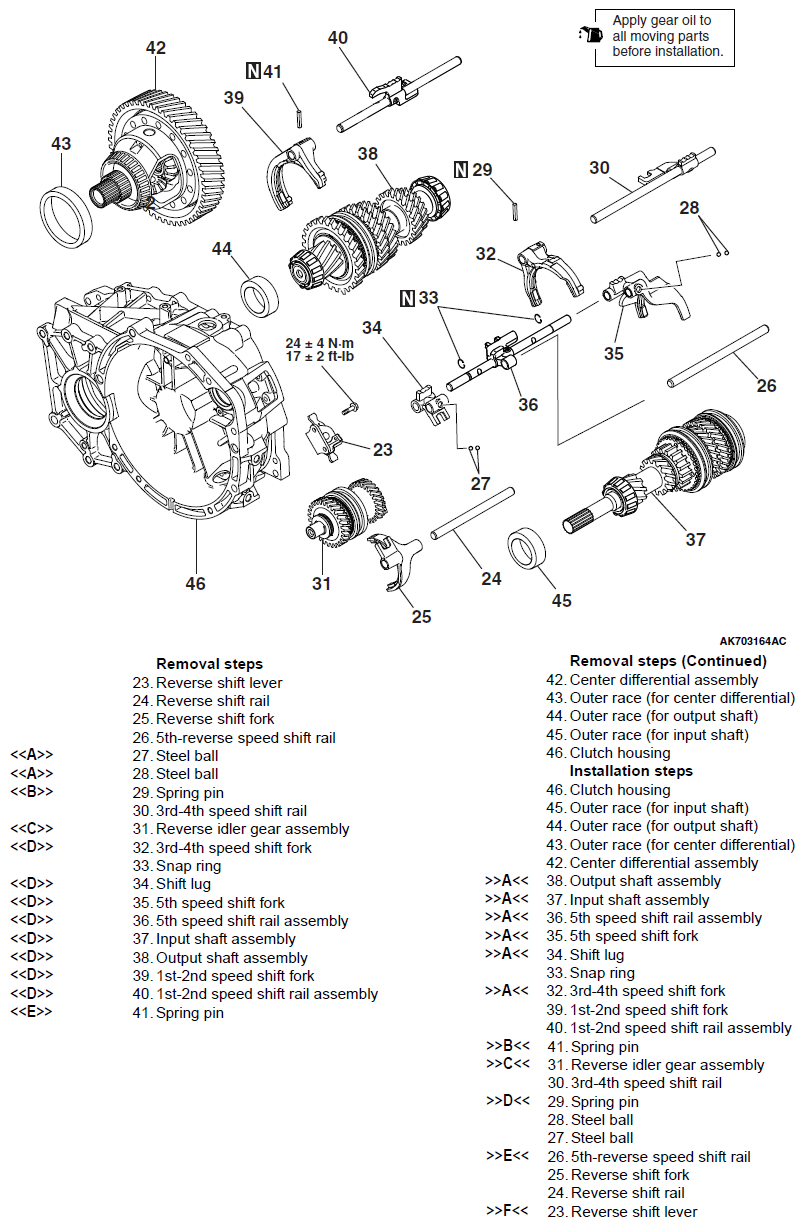

Fig 3: Exploded View Of Transaxle Components With Torque Specifications (3 Of 3)
G06676948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
