Inspection Procedure 2: Defective Power Supply System Of The Ignition Switch: Notes

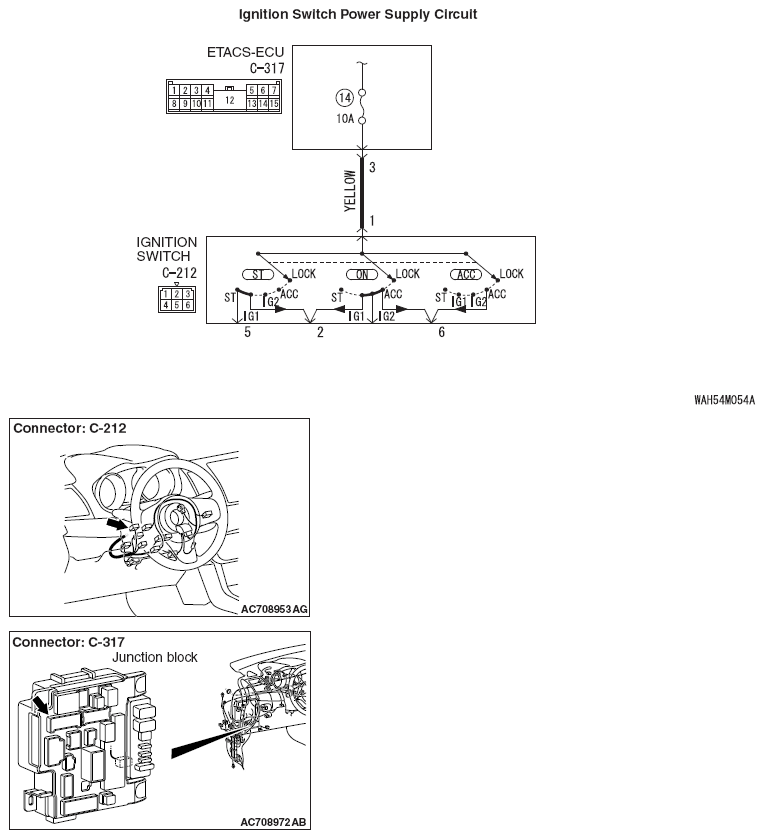

Fig 1: Ignition Switch Power Supply Circuit Diagram
G06678023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
