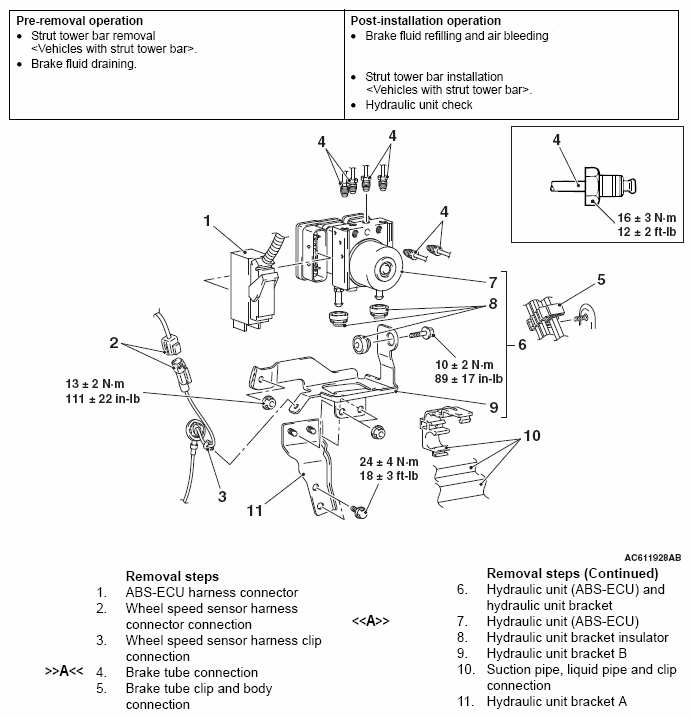

Removal And Installation: Notes
NOTE:
ASC-ECU is located in the hydraulic unit.
CAUTION:
When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch ON and OFF (vehicle information from ETACS-ECU is registered), always perform the calibration of steering wheel sensor, G and yaw rate sensor, brake fluid pressure sensor, cut valve, and inlet valve. (Refer to G AND YAW RATE SENSOR CALIBRATION
, STEERING WHEEL SENSOR CALIBRATION
, MASTER CYLINDER BRAKE FLUID PRESSURE SENSOR CALIBRATION
, and CALIBRATION OF CUT VALVE AND INLET VALVE
.)
