Brake Pad Replacement - RALLIART: Front

WARNING: This page is about a different variant/trim than selected.

CAUTION: When replacing, replace both brake pads (right and left) as a set.

Remove the parts indicated in the illustration, swivel the caliper body upward and retain it with a wire or similar tool.

Fig 1: Identifying Lock Pin (Front)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

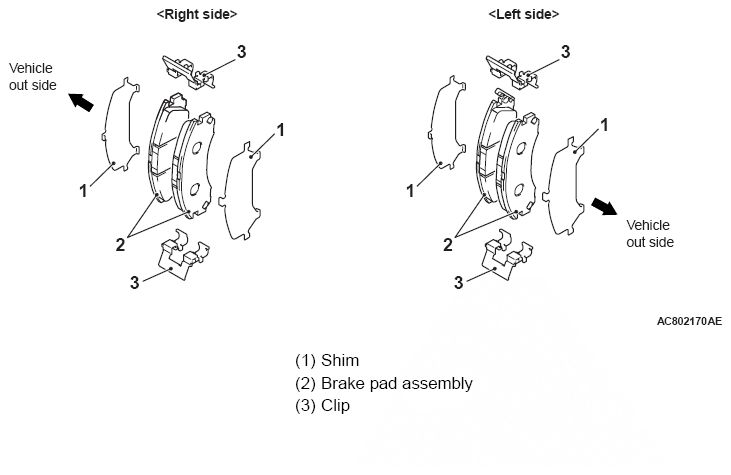

Fig 2: Identifying Brake Pad Assembly, Shim And Clip (Right And Left Side)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the following parts from the caliper body.
1. Shim
2. Brake pad assembly
3. Clip
CAUTION: Keep grease or other soiling off the pad and brake disc friction surfaces.
Clean the piston part, and press the piston into the cylinder using the special tool piston expander (MB990520).
Assemble the shim, brake pad assembly and clip to the caliper support, and tighten the lock pin to the specified torque.

Tightening torque: 74 ± 10 N.m (55 ± 7 ft-lb)

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.

Fig 3: Pressing Piston Into Cylinder Using Piston Expander (MB990520)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
