Removal And Installation - 2.0L Engine Non-Turbo, 2.4L Engine: Notes

WARNING: This page is about a different variant/trim than selected.

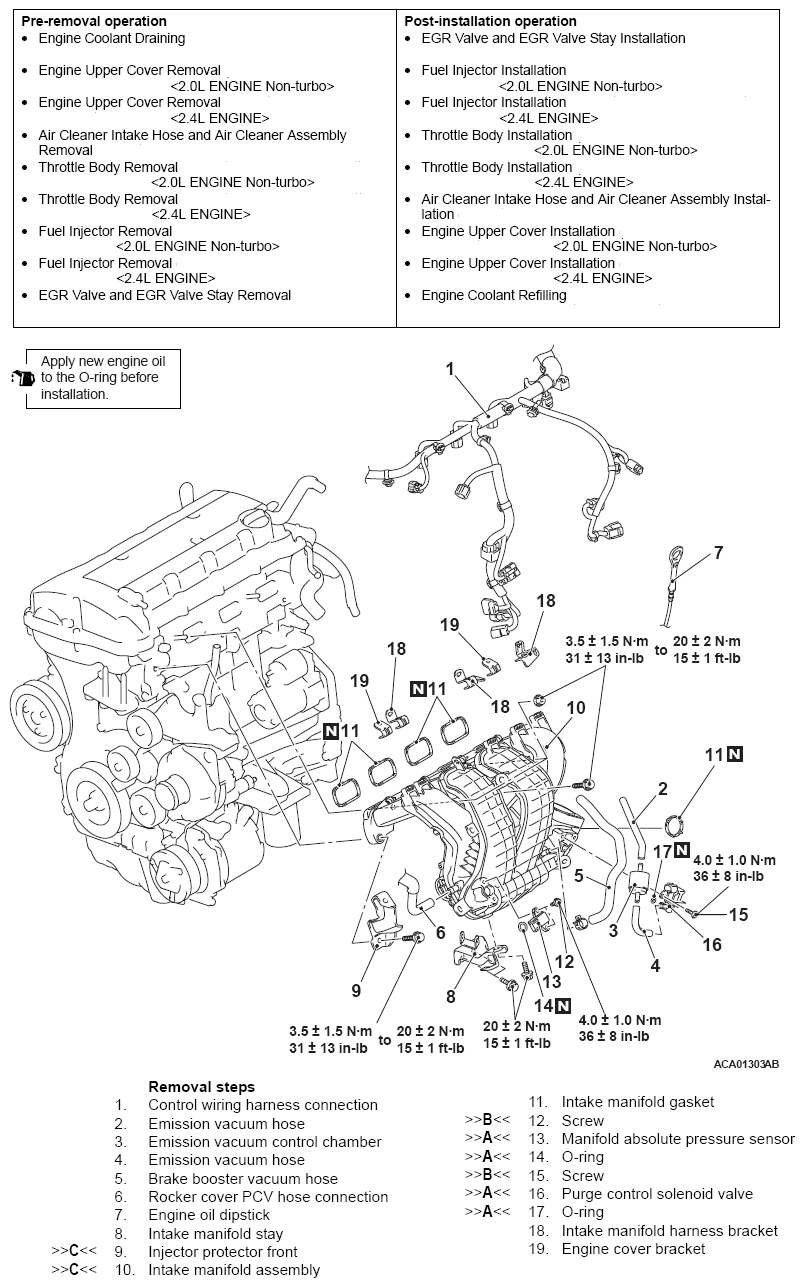

Fig 1: Intake Manifold Components With Torque Specifications (2.0L Engine Non-Turbo, 2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
