Inspection Procedure 9: The Skid Control/TCL System Cannot Be Disabled When ASC OFF Switch Is Pressed For 3 Seconds Or More To Turn The System OFF: Notes

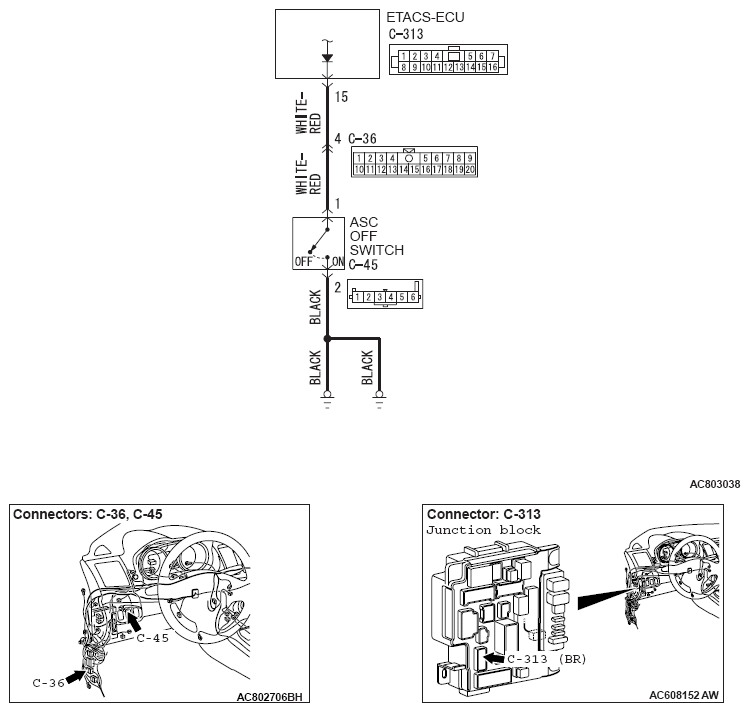

Fig 1: Skid Control/TCL System Inspection Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to CAN BUS LINE DIAGNOSTIC FLOW ).
• Whenever ECU is replaced, ensure that the CAN bus lines are normal.
