Inspection Procedure 4: When The Speech Switch Is Pressed, The Voice Information Is Not Output - Vehicles With Radio And CD Player: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

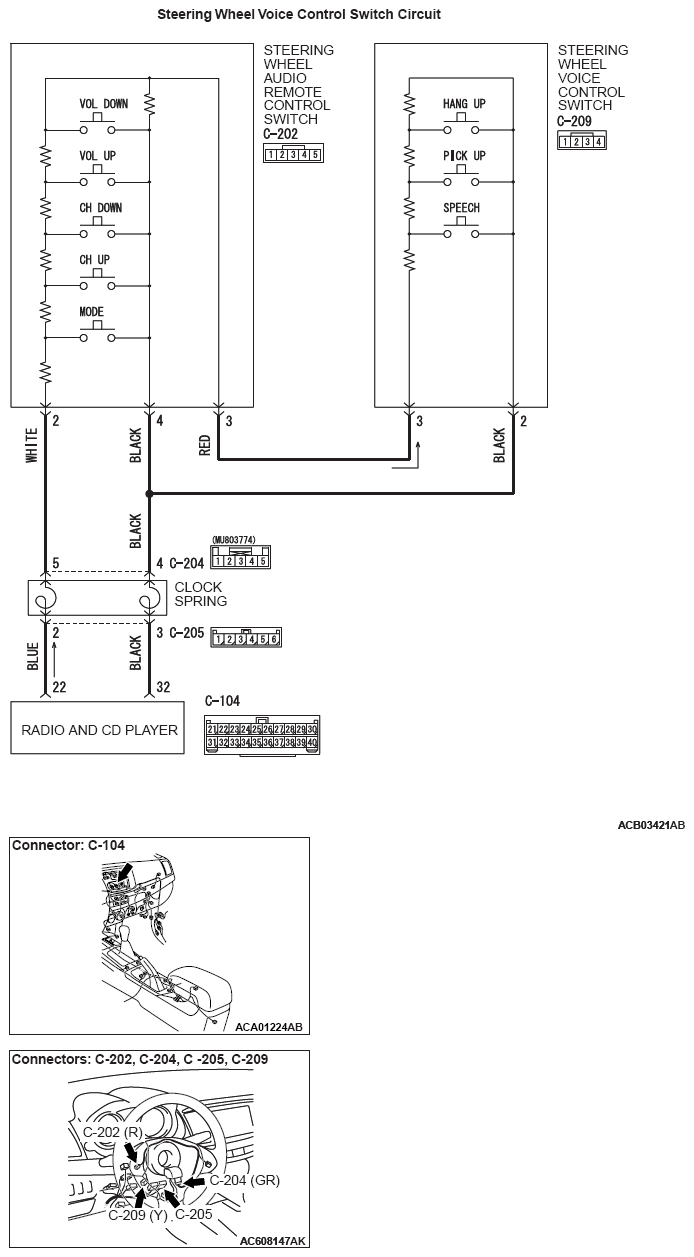

Fig 1: Steering Wheel Voice Control Switch Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
