Fuse Block: Locations

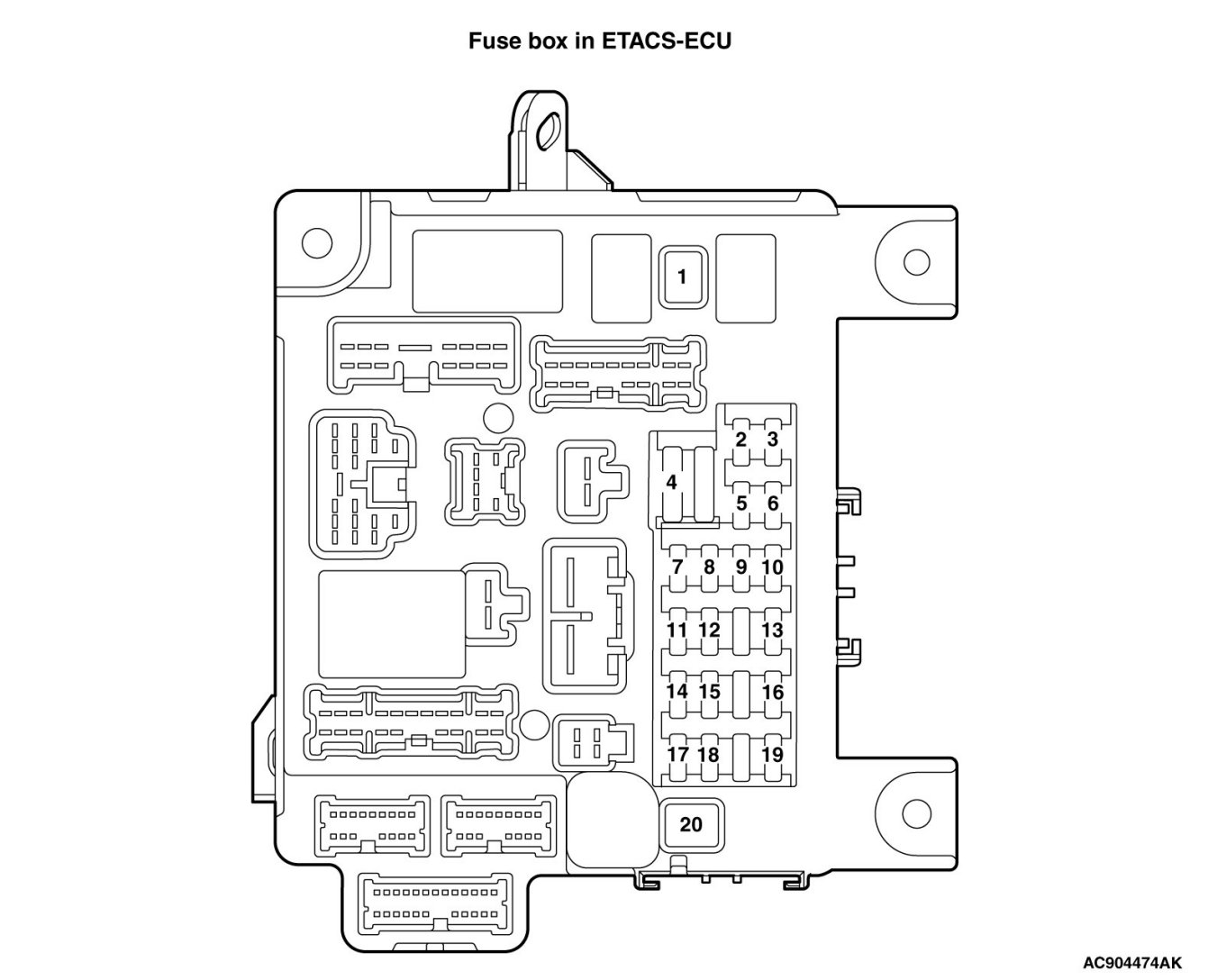

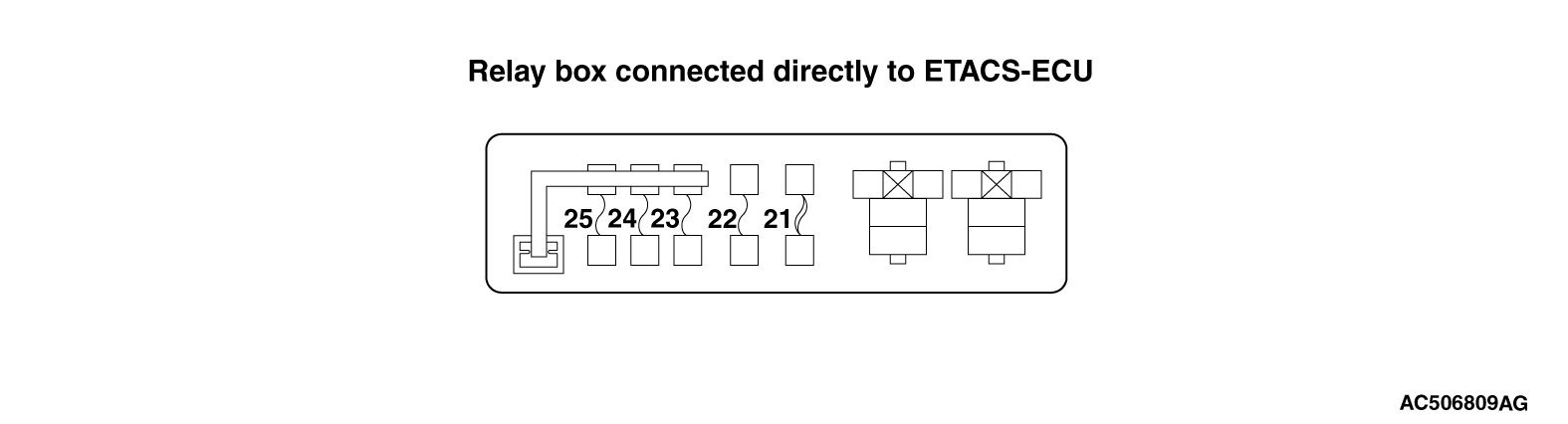

CENTRALIZED JUNCTION

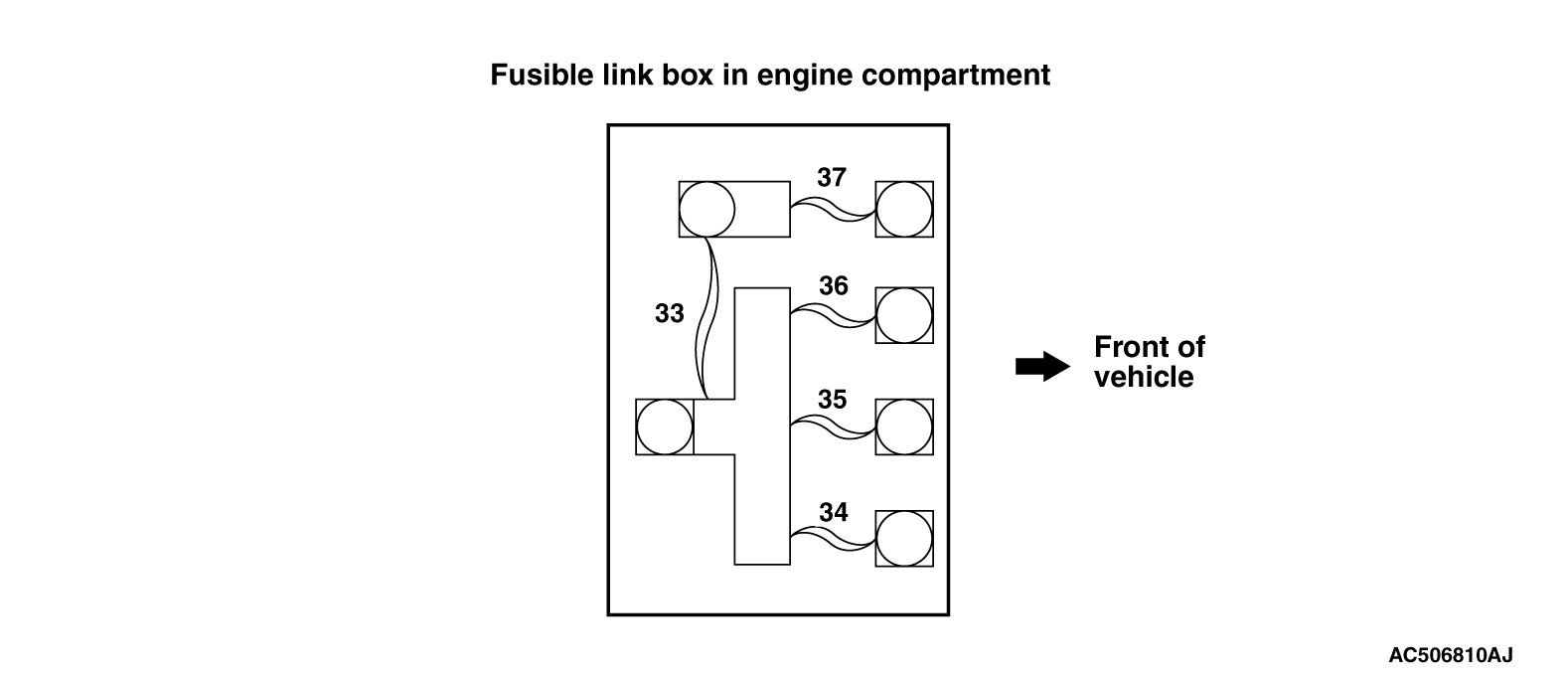

FUSIBLE LINK AND FUSE

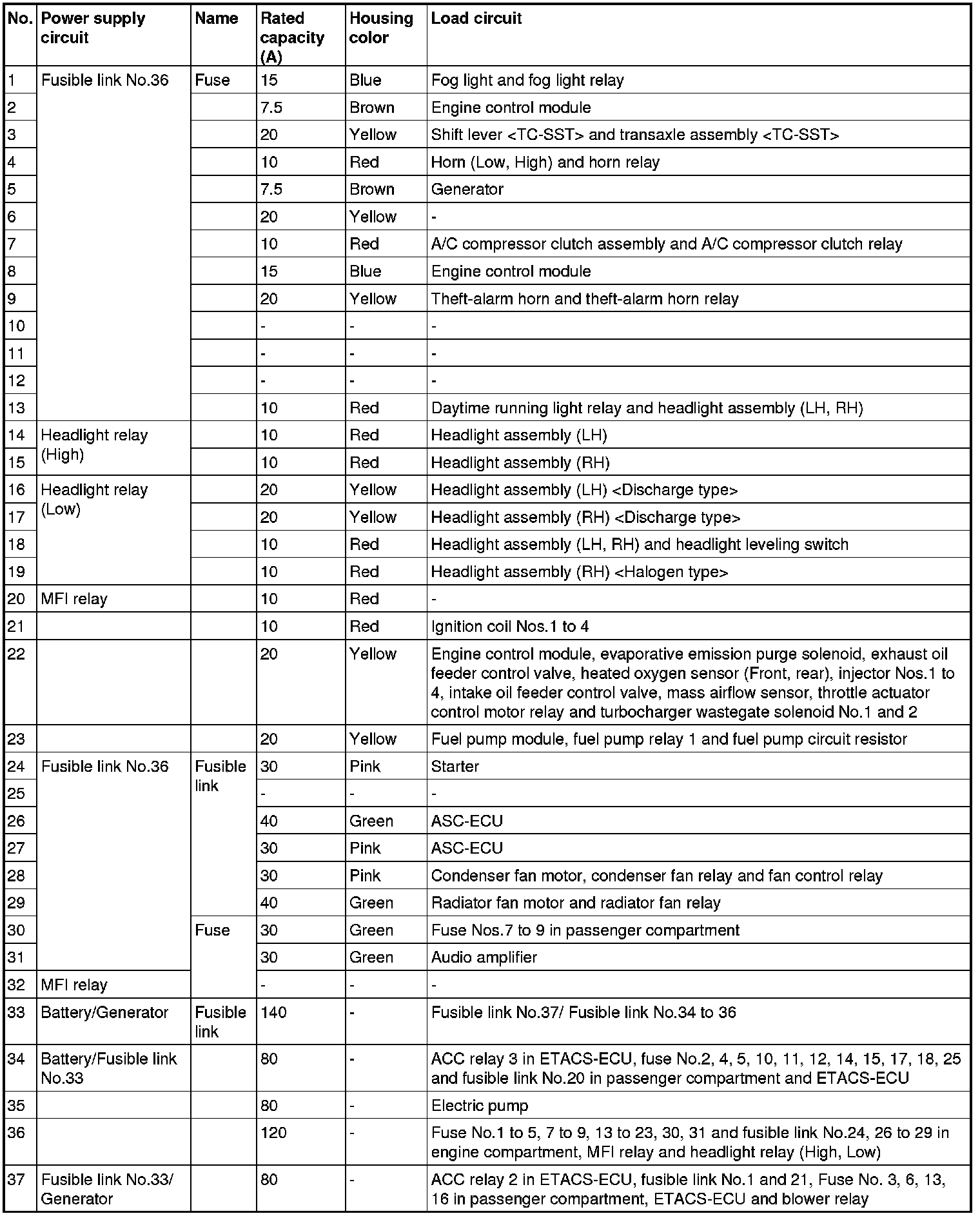

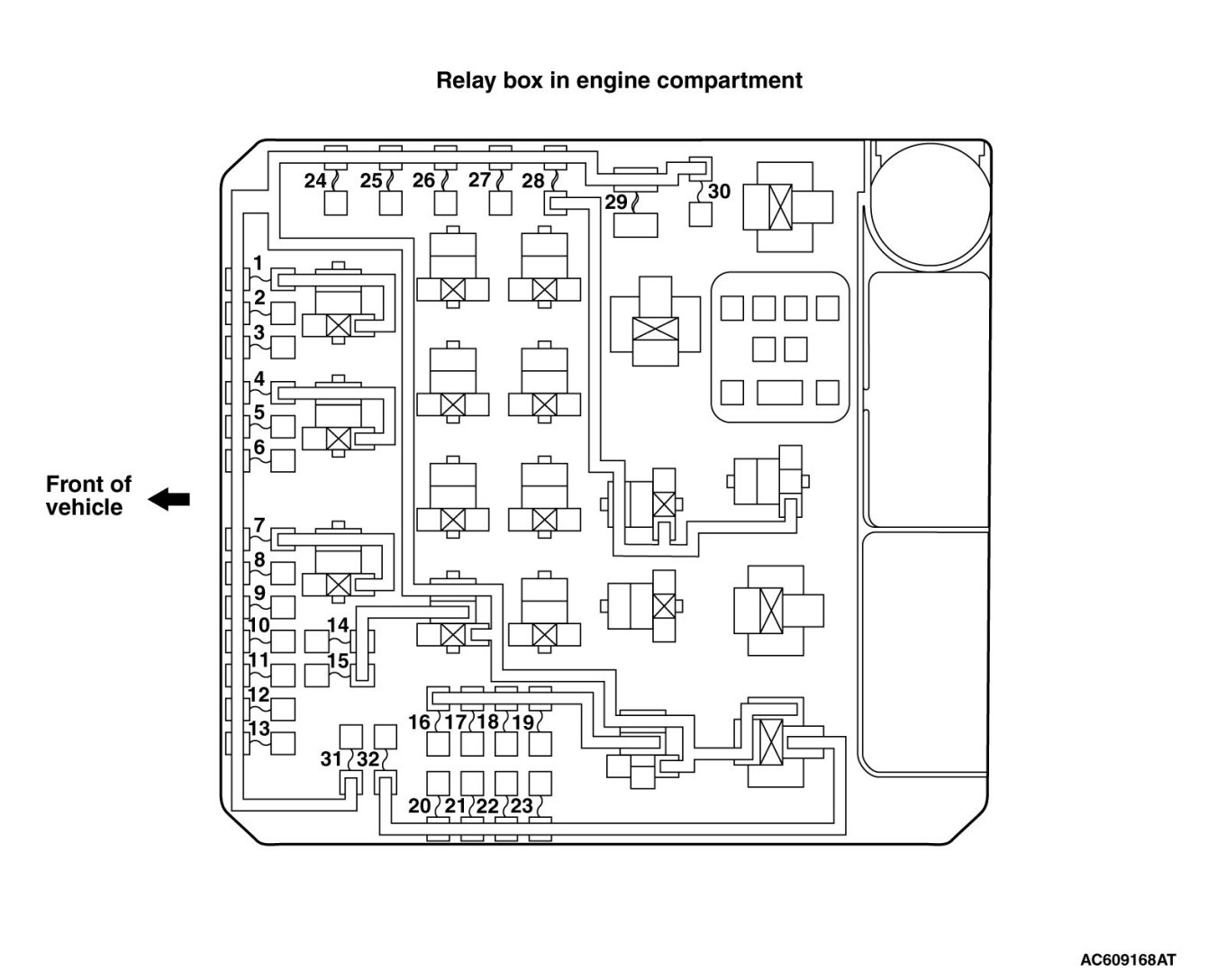

ENGINE COMPARTMENT

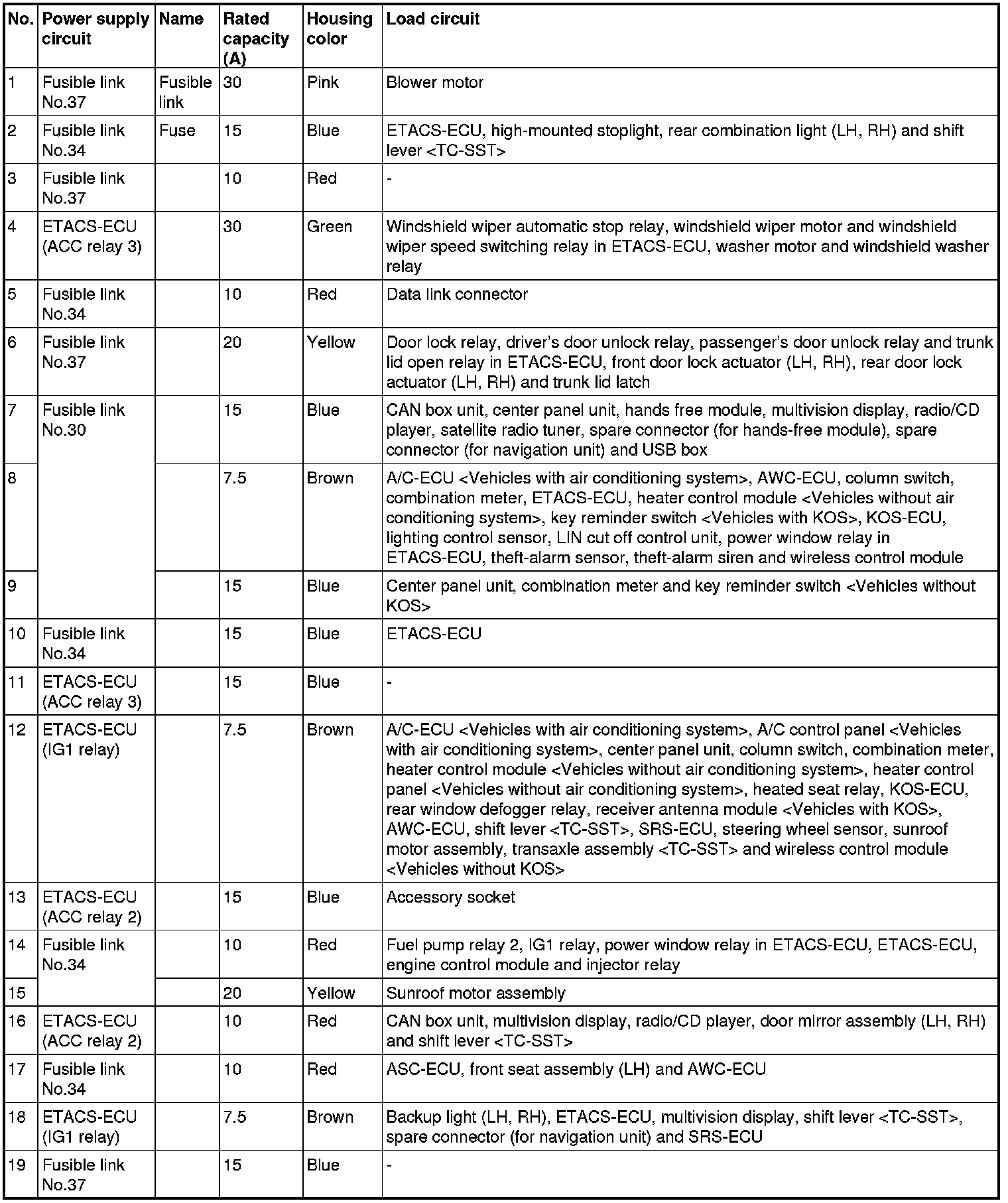

PASSENGER COMPARTMENT

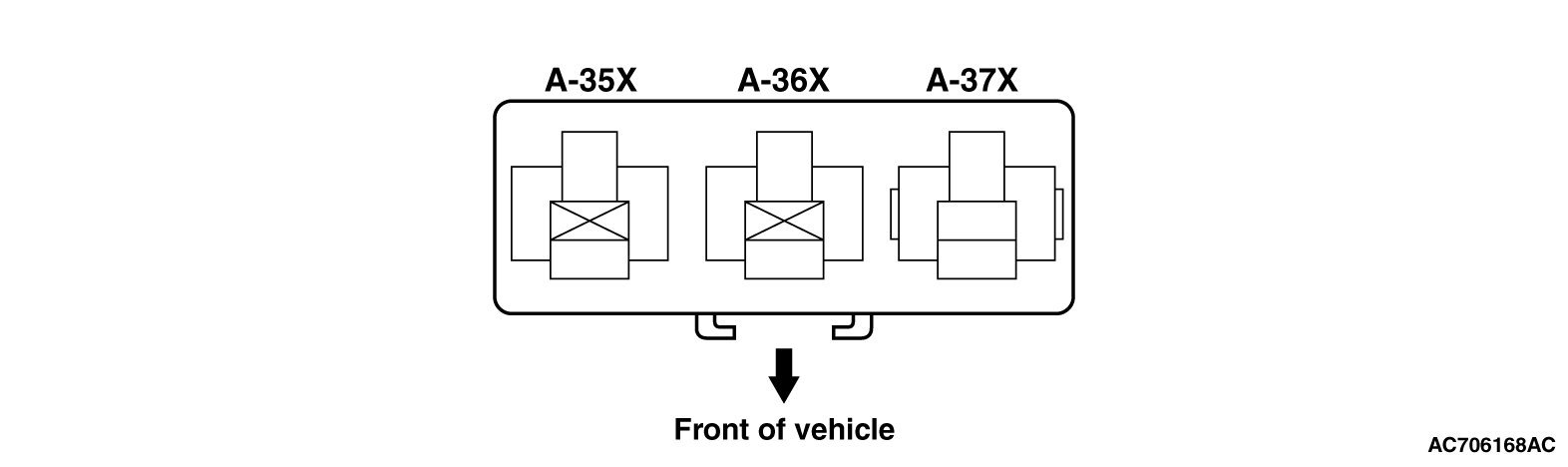

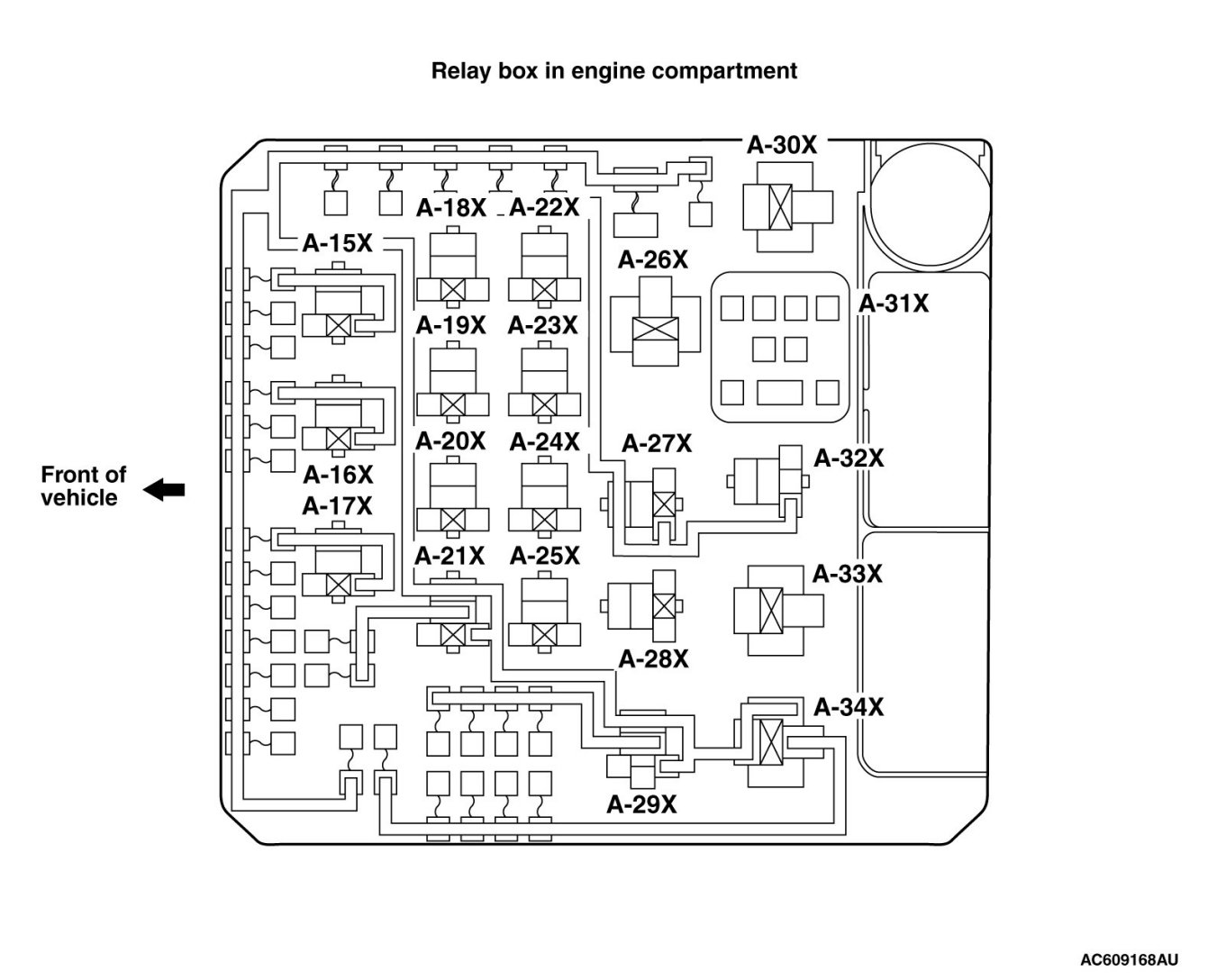

CENTRALIZED RELAY
