Inspection Procedure 10: ETACS-ECU Does Not Receive Any Signal From The Hazard Warning Light Switch: Notes

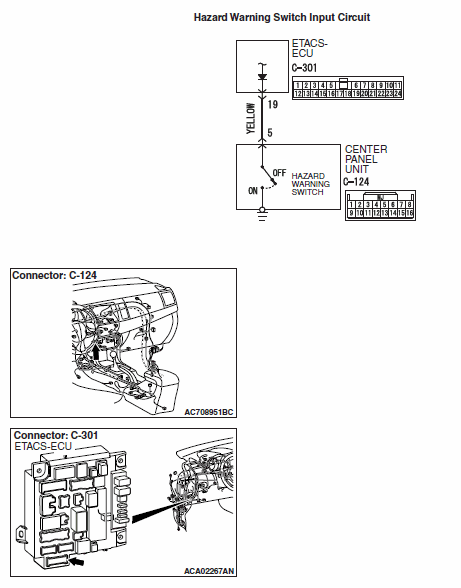

Fig 1: Hazard Warning Switch Circuit Diagram
G00528532Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
