Inspection Procedure 4: The Navigation System Can Be Operated While The Vehicle Is Driven: Notes

CAUTION: Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)

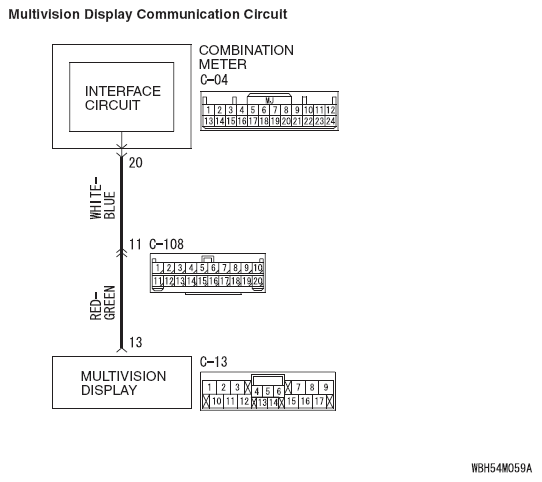

Fig 1: Multivision Display Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

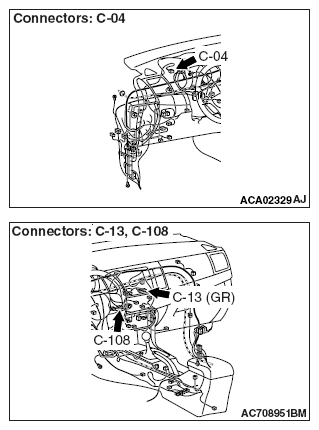

Fig 2: Locating Multivision Display Communication Connector C-04, C-13 & C-108

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
