INSPECTION PROCEDURE 10: The Windshield Washer Does Not Work Normally: Notes

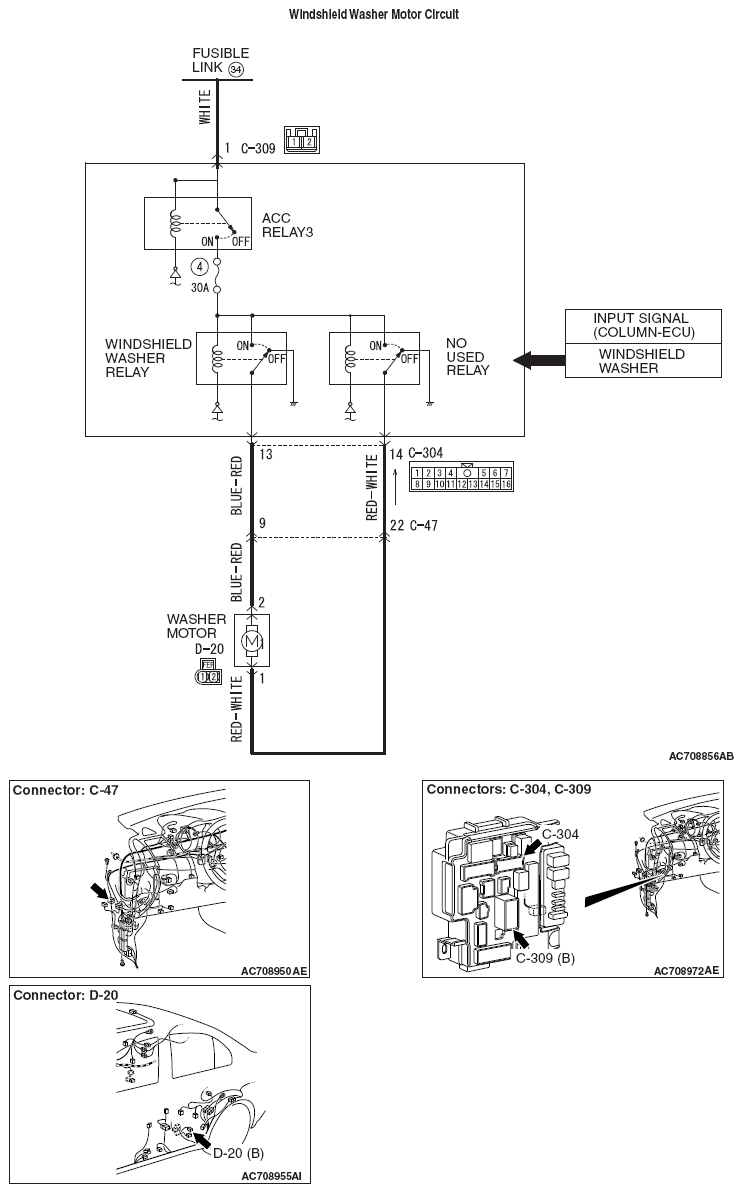

Fig 1: Windshield Washer Motor Circuit Diagram
G06677923Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
