Removal And Installation: Notes

CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to SERVICE PRECAUTIONS and CURTAIN AIR BAG MODULES

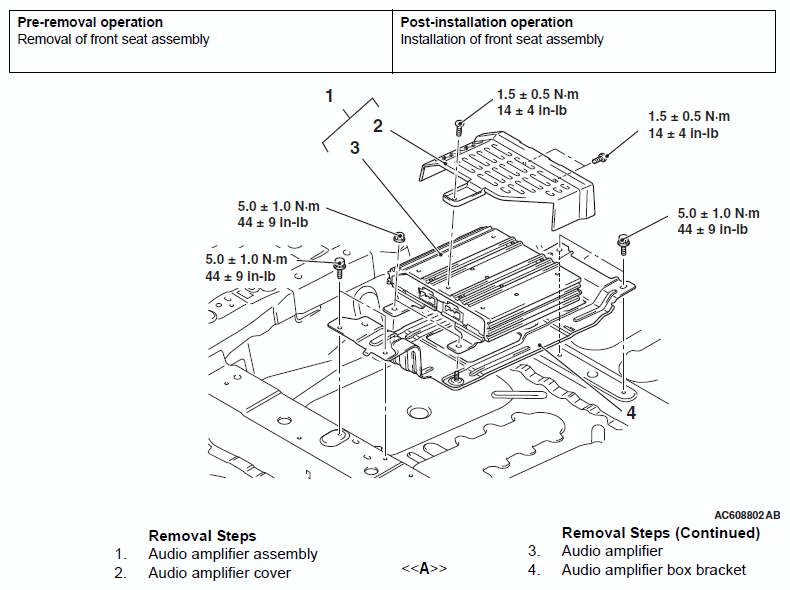

Fig 1: Audio Amplifier Assembly Components With Torque Specifications
G06678467Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
