Removal And Installation

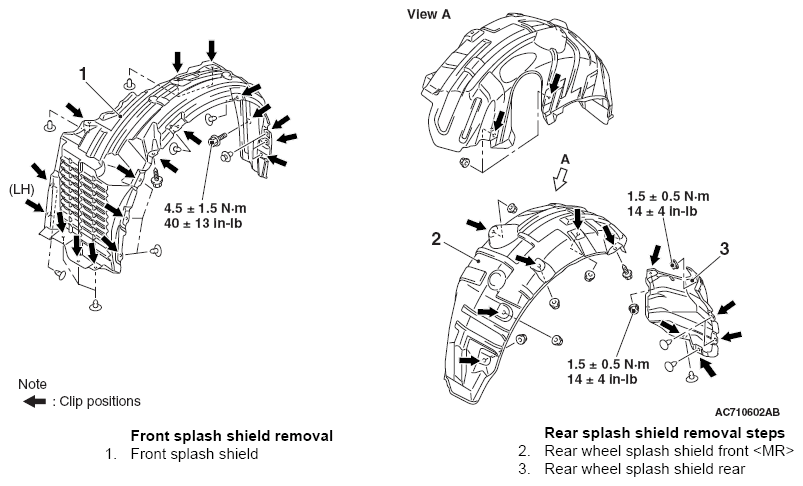

Fig 1: Removing/Installing Front & Rear Splash Shield With Torque Specifications
G06677814Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
