OEM Component Locations - Lancer Evolution: Sensor

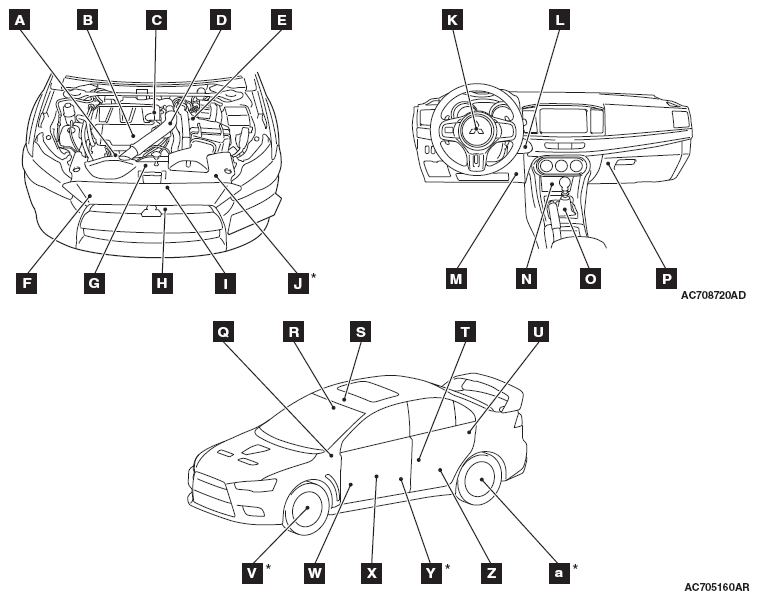

| Name | Symbol |
|---|---|
| A/C pressure sensor | F |
| Accelerator pedal position sensor | M |
| Ambient air temperature sensor | H |
| Crankshaft position sensor | I |
| Engine coolant temperature sensor | D |
| Exhaust camshaft position sensor | C |
| Fin thermo sensor | P |
| Front impact sensor | J |
| Front light sensor < Vehicles with automatic anti-dazzling mirror > | R |
| Front passenger's seat (incorporating weight sensor) | Q |
| Front wheel speed sensor | V |
| Fuel level sensor (sub) | T |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | Z |
| Fuel tank differential pressure sensor | Z |
| G and yaw rate sensor | N |
| Heated oxygen sensor (Front) | W |
| Heated oxygen sensor (Rear) | W |
| Intake air temperature sensor 2 | B |
| Intake camshaft position sensor | B |
| Interior temperature sensor | L |
| Knock sensor | G |

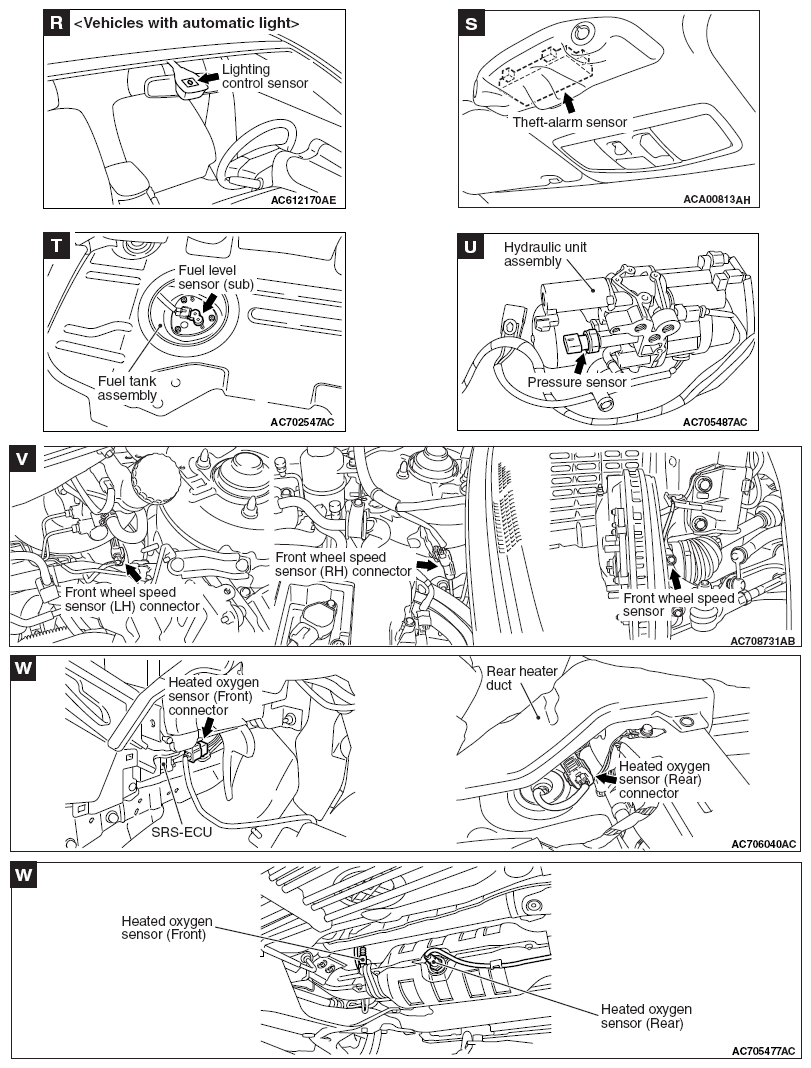

| Lighting control sensor < Vehicles with automatic light > | R |

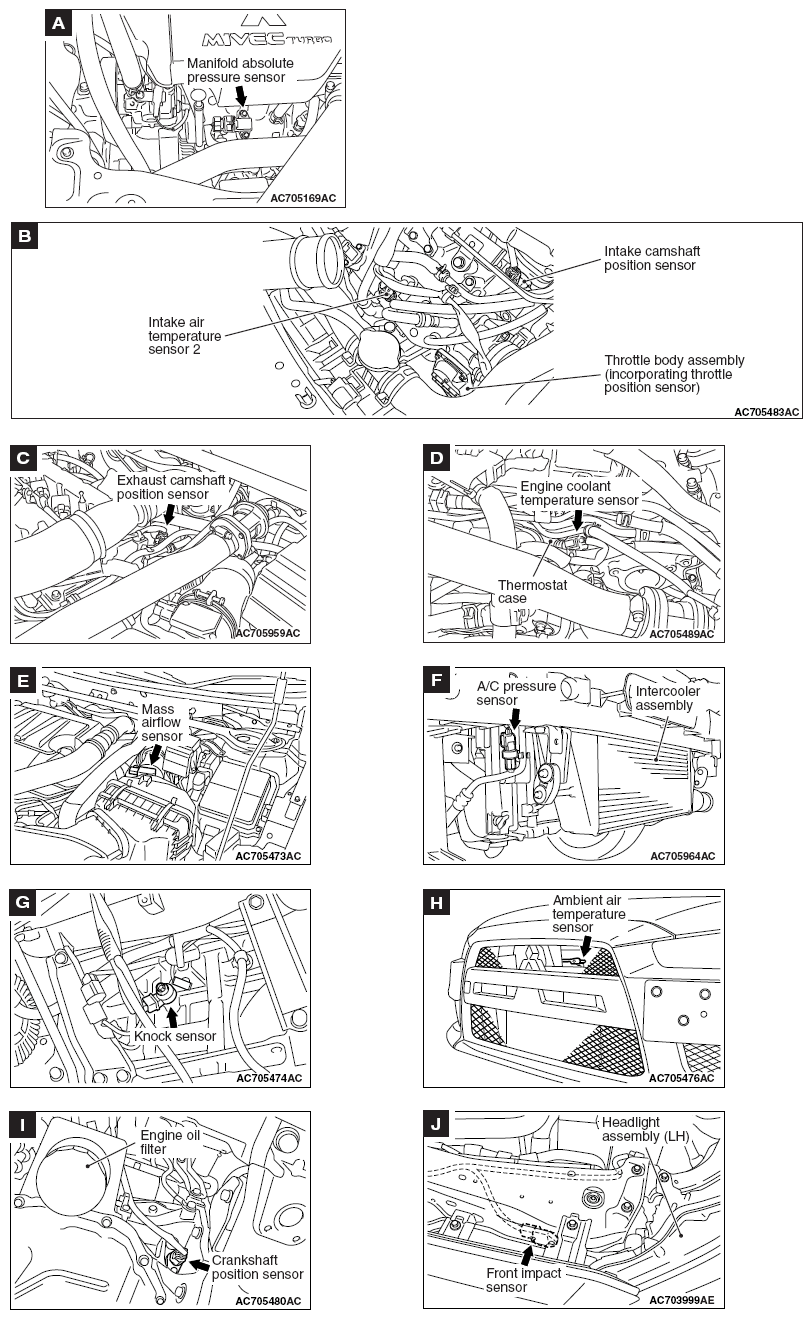

| Manifold absolute pressure sensor | A |
| Mass airflow sensor | E |
| Pressure sensor | U |
| Rear light sensor < Vehicles with automatic anti-dazzling mirror > | R |
| Rear wheel speed sensor | a |

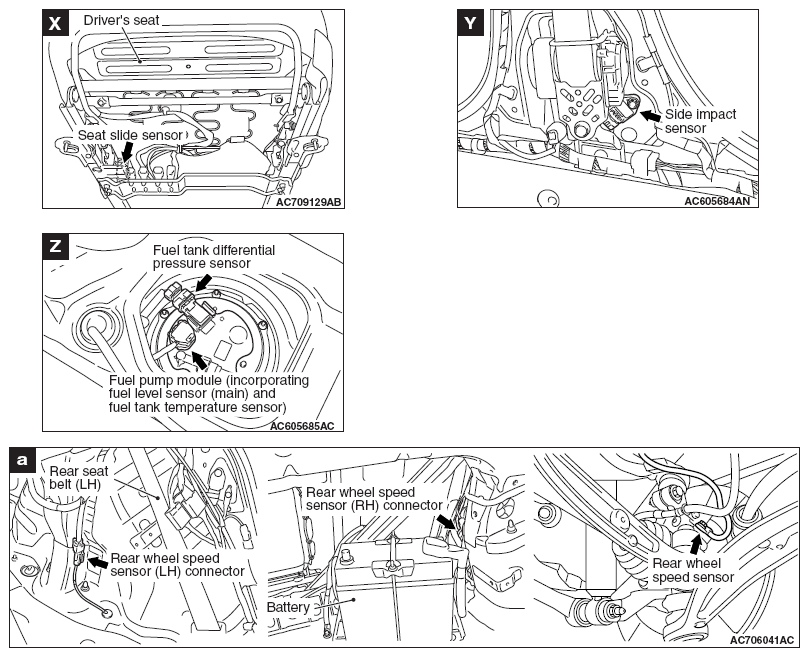

| Seat slide sensor | X |
| Shift lever (incorporating lever position sensor) < TC-SST > | O |
| Side impact sensor | Y |
| Steering wheel sensor | K |
| Theft-alarm sensor | S |
| Throttle body assembly (incorporating throttle position sensor) | B |
NOTE:
The * symbols indicate equipped at both sides.
