Removal And Installation: Notes

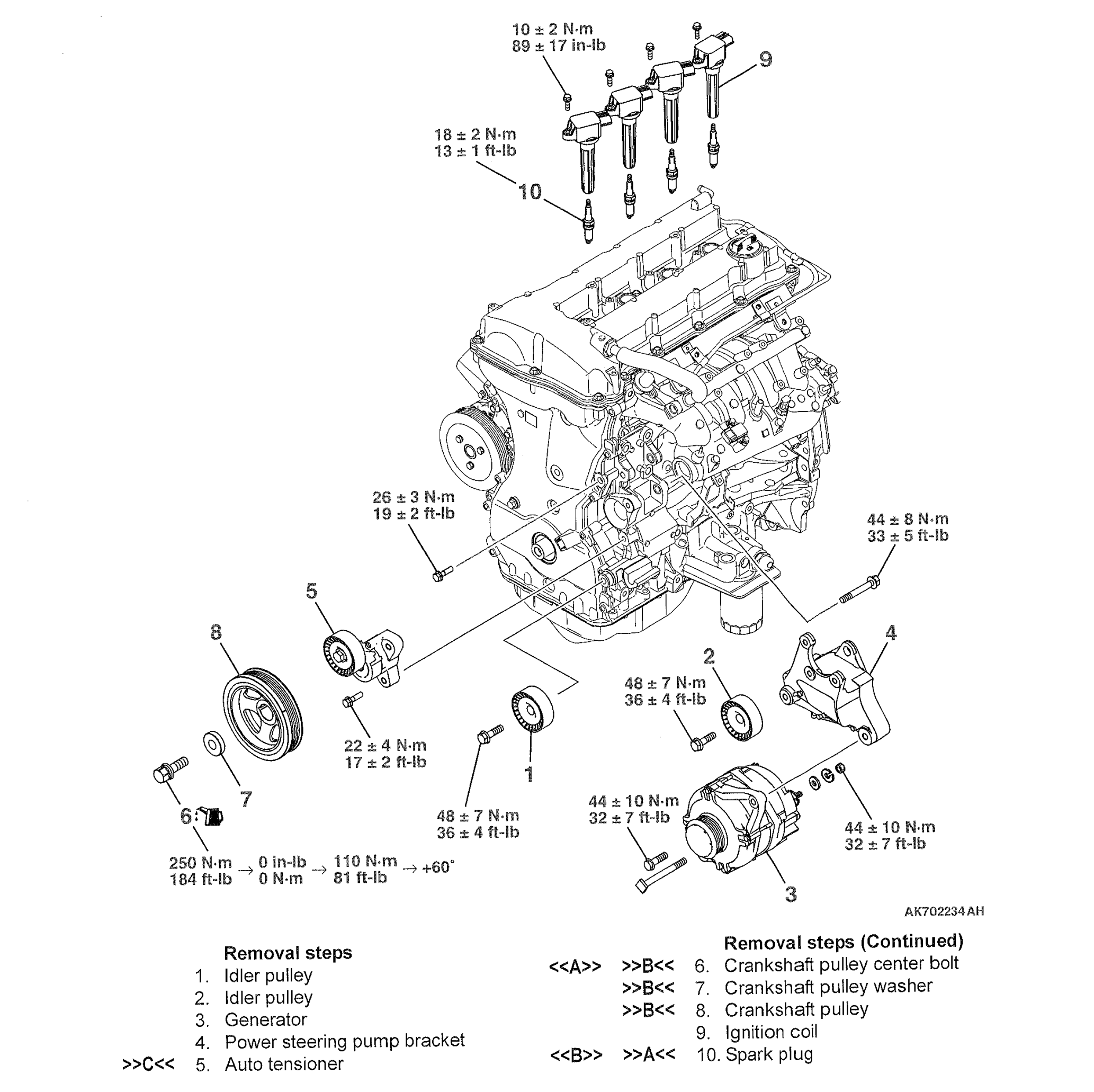

Fig 1: Removal/Installation Of Generator & Ignition System With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990767: Front Hub And Flange Yoke Holder
• MB991398: Spark Plug Wrench
• MB991883: Flywheel Stopper
• MD998719: Pin
