Removal And Installation: Notes

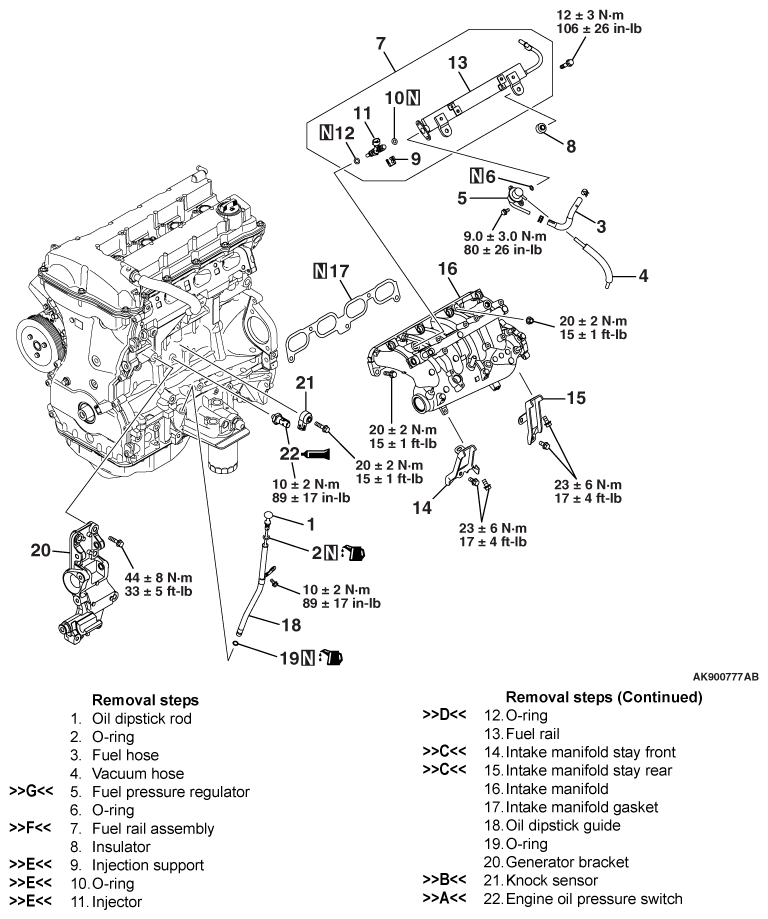

Fig 1: Removal/Installation Of Intake Manifold & Fuel System With Torque Specifications
G06674123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
