Removal And Installation: Notes

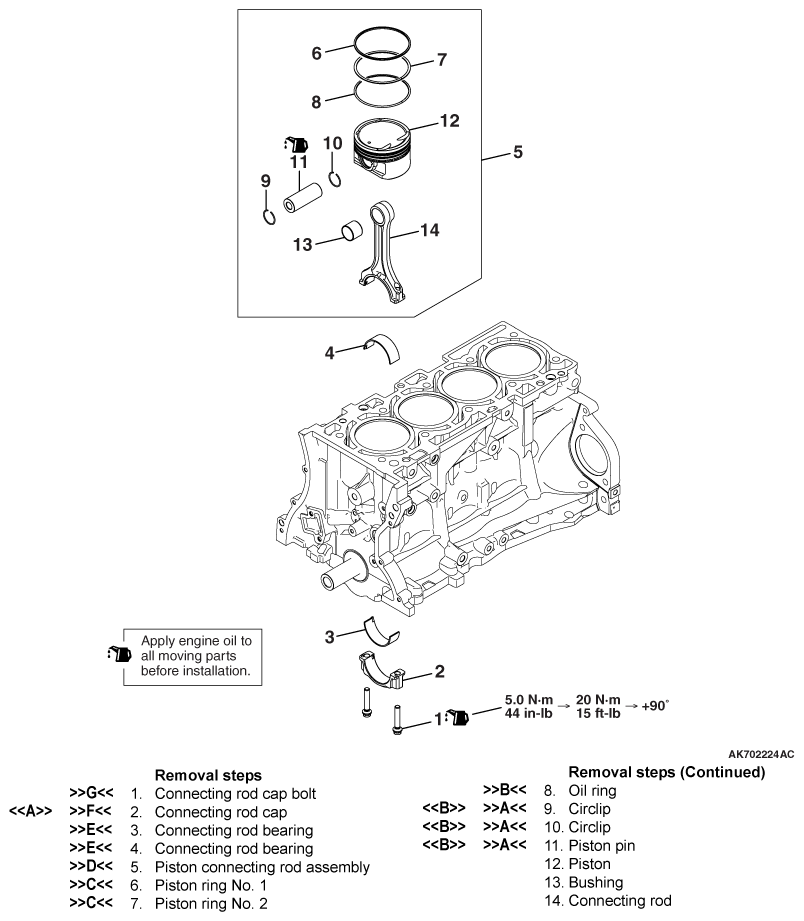

Fig 1: Removal/Installation Of Piston & Connecting Rod Components With Torque Specifications
G06674235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
