Vehicles With Cruise Control System
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
Check for continuity between the terminals of the switch.
STOPLIGHT SWITCH CONDITIONS
| Check condition | Terminal connector of tester | Normal condition |
|---|---|---|
| At free position | 1 - 2 (for stoplight switch) | Continuity exists (2 Ω or less) |
| 3 - 4 (for cruise control) | No continuity | |

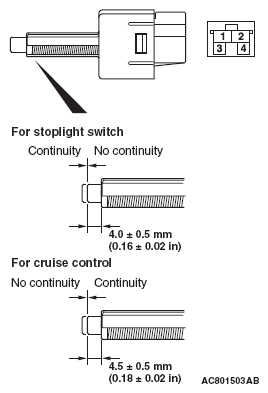

| Press the plunger from the edge of the outer case by the dimension shown in the illustration. | 1 - 2 (for stoplight switch) | No continuity |
| 3 - 4 (for cruise control) | Continuity exists (2 Ω or less) |
