Can Bus Diagnostics Table
WARNING: This page is about a different variant/trim than selected.
CAUTION:
A diagnosis code may not also be set in the CAN-B lines under the conditions below. If no diagnosis code has been set due to electrical noise, confirm diagnosis item 28 DIAGNOSTIC ITEM 28: DIAGNOSE THE ETACS-ECU, JOINT CONNECTOR (CAN1) OR LINES BETWEEN ETACS-ECU AND JOINT CONNECTOR (CAN1).
.
- Open circuit at the CAN_H side of the CAN-B bus lines
- Open circuit at the CAN_L side of the CAN-B bus line
- Short to ground at the CAN_H side of the CAN-B bus line
CAUTION:
During diagnosis, a diagnosis code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. After completing the repair, confirm all systems for diagnosis code(s). If diagnosis code(s) are set, erase them all.
This diagnosis applies only to the CAN bus lines. If a different system is defective, proceed to the applicable diagnosis section for each system. Observe the diagnosis procedure below only when the CAN bus line is defective.
CAN BUS DIAGNOSTICS TABLE

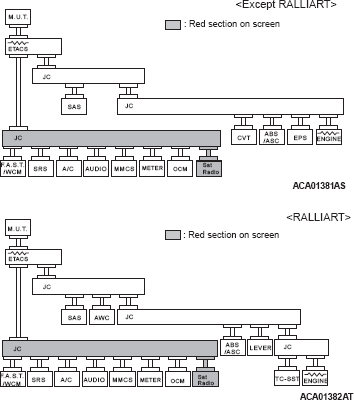

| Scan tool screen (The ECUs that are not adopted are not displayed.) |
Comment | Diagnostics detail | Reference |
|---|---|---|---|

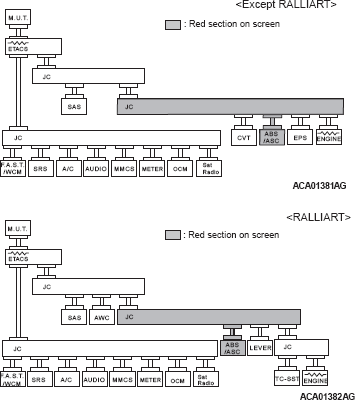

| Short circuit to battery in red displayed area is estimated. | Diagnostics Item 1 Diagnose when the scan tool cannot receive the data sent by ETACS-ECU. |
DIAGNOSTIC ITEM 1: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ETACS-ECU. | |

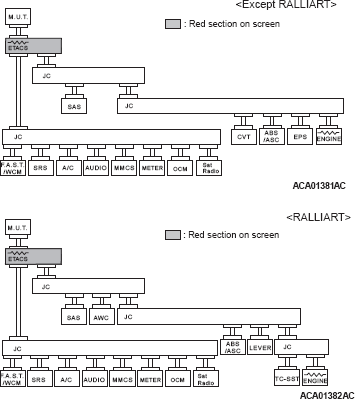

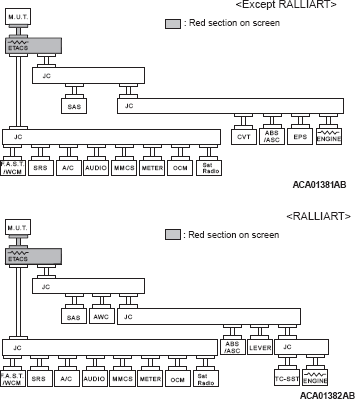

| Grounding in red displayed area is estimated. | Diagnostics Item 2 Malfunction of the ETACS-ECU. |
DIAGNOSTIC ITEM 2: MALFUNCTION OF THE ETACS-ECU. | |

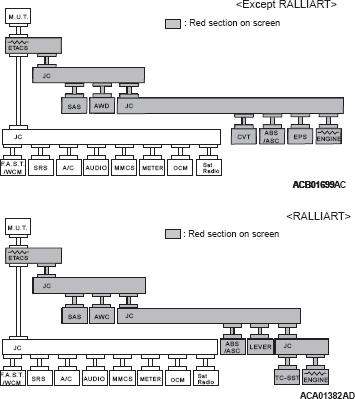

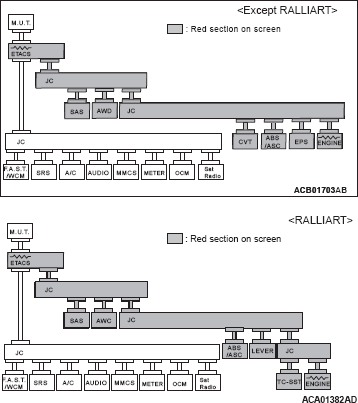

| CAN-C: A bus-off failure is present in the gateway ECU. | Diagnostics Item 3 Abnormal short between the CAN-C bus lines. |
DIAGNOSTIC ITEM 3: ABNORMAL SHORT BETWEEN THE CAN-C BUS LINES. | |
| CAN-C: Grounding in red displayed area is estimated | Diagnostics Item 4 Diagnose shorts in the ground to CAN-C bus line. |
DIAGNOSTIC ITEM 4: DIAGNOSE SHORTS IN THE GROUND TO CAN-C BUS LINE. | |
| CAN-C: Short circuit to battery in red displayed area is estimated | Diagnostics Item 5 Diagnose shorts in the power supply to CAN-C bus line. |
DIAGNOSTIC ITEM 5: DIAGNOSE SHORTS IN THE POWER SUPPLY TO CAN-C BUS LINE. | |

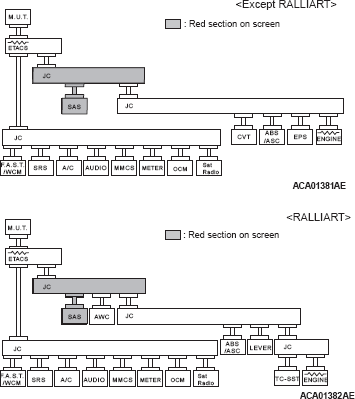

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 6 Diagnose when the scan tool cannot receive the data sent by steering wheel sensor. |
DIAGNOSTIC ITEM 6: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY STEERING WHEEL SENSOR. | |

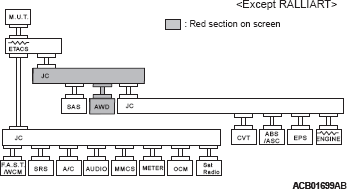

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 7 Diagnose when the M.U.T.-III cannot receive the data sent by AWD-ECU < Electric controlled AWD > |
DIAGNOSTIC ITEM 7: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY AWD-ECU < ELECTRONIC CONTROLLED AWD >. | |

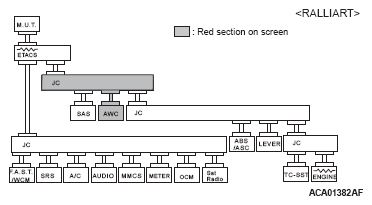

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 8 Diagnose when the scan tool cannot receive the data sent by AWC-ECU < RALLIART > |
DIAGNOSTIC ITEM 8: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY AWC-ECU < RALLIART >. | |
| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 9 Diagnose when the scan tool cannot receive the data sent by ABS-ECU < vehicles without ASC > or ASC-ECU < vehicles with ASC >. |
DIAGNOSTIC ITEM 9: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ABS-ECU < VEHICLES WITHOUT ASC > OR ASC-ECU < VEHICLES WITH ASC >. | |

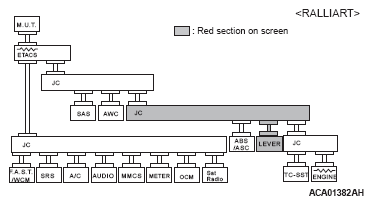

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 10 Diagnose when the scan tool cannot receive the data sent by shift lever < RALLIART >. |
DIAGNOSTIC ITEM 10: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY SHIFT LEVER < RALLIART >. | |

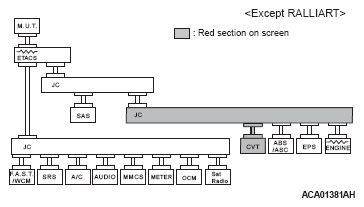

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 11 Diagnose when the scan tool cannot receive the data sent by TCM < CVT >. |
DIAGNOSTIC ITEM 11: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY TCM < CVT >. | |

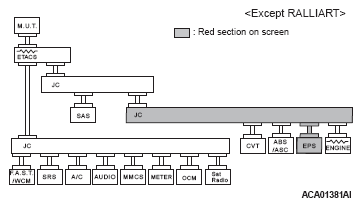

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 12 Diagnose when the scan tool cannot receive the data sent by electric power steering-ECU < vehicles with electric power steering >. |
DIAGNOSTIC ITEM 12: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ELECTRIC POWER STEERING-ECU < VEHICLES WITH ELECTRIC POWER STEERING >. | |

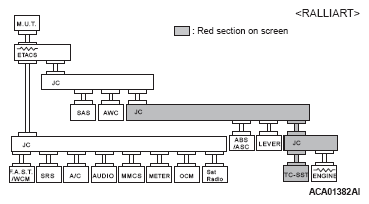

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 13 Diagnose when the scan tool cannot receive the data sent by transaxle assembly (TC-SST-ECU) < RALLIART > |
DIAGNOSTIC ITEM 13: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY TRANSAXLE ASSEMBLY (TC-SST-ECU) < RALLIART >. | |

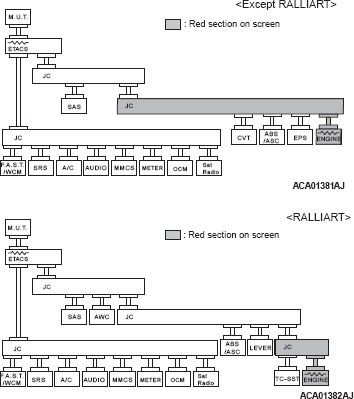

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 14 Diagnose when the scan tool cannot receive the data sent by ECM. |
DIAGNOSTIC ITEM 14: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ECM. | |

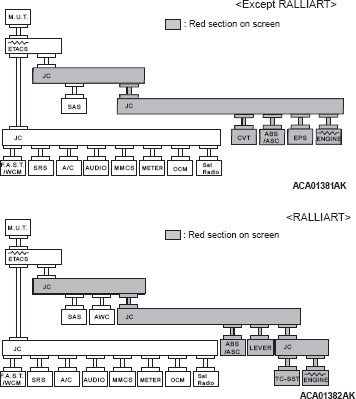

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 15 Diagnose the lines between the ETACS-ECU and joint connector (CAN2). |
DIAGNOSTIC ITEM 15: DIAGNOSE THE LINES BETWEEN THE ETACS-ECU AND JOINT CONNECTOR (CAN2). | |
| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 16 Diagnose the lines between joint connector (CAN2) and joint connector (CAN3). |
DIAGNOSTIC ITEM 16: DIAGNOSE THE LINES BETWEEN JOINT CONNECTOR (CAN2) AND JOINT CONNECTOR (CAN3). | |

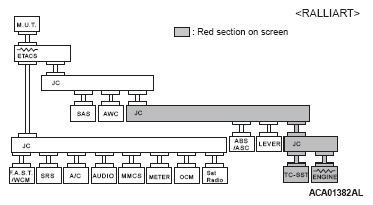

| CAN-C: Disconnection in red displayed area is estimated. | Diagnostics Item 17 Diagnose the lines between joint connector (CAN3) and joint connector (CAN4) < RALLIART >. |
DIAGNOSTIC ITEM 17: DIAGNOSE THE LINES BETWEEN JOINT CONNECTOR (CAN3) AND JOINT CONNECTOR (CAN4) < RALLIART >. | |
| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 18 Diagnose when the scan tool cannot receive the data sent by KOS-ECU < vehicles with KOS >. |
DIAGNOSTIC ITEM 18: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY KOS-ECU < VEHICLES WITH KOS >. | |

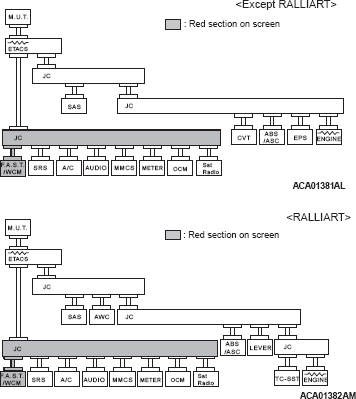

| Diagnostics Item 19 Diagnose when the scan tool cannot receive the data sent by WCM < vehicles without KOS > |
DIAGNOSTIC ITEM 19: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY WCM < VEHICLES WITH WCM >. | ||

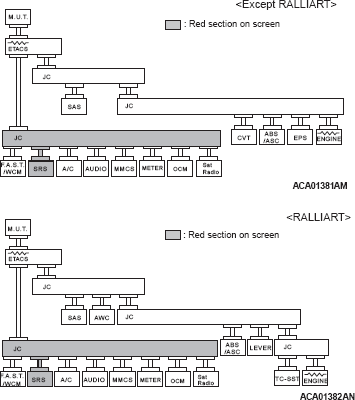

| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 20 Diagnose when the scan tool cannot receive the data sent by SRS-ECU. |
DIAGNOSTIC ITEM 20: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY SRS-ECU. | |

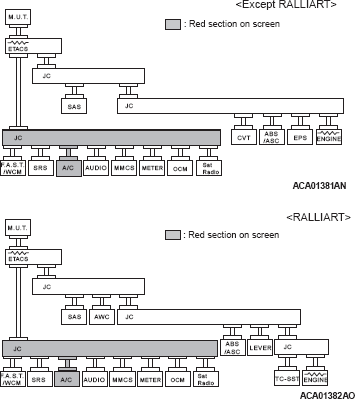

| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 21 Diagnose when the scan tool cannot receive the data sent by A/C-ECU < vehicles with A/C > or heater control unit < vehicles without A/C >. |
DIAGNOSTIC ITEM 21: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY A/C-ECU < VEHICLES WITH A/C > OR HEATER CONTROL UNIT < VEHICLES WITHOUT A/C >. | |

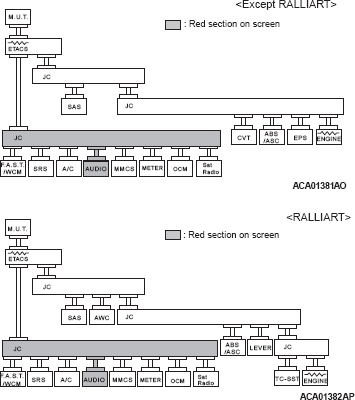

| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 22 Diagnose when the scan tool cannot receive the data sent by radio and CD player < vehicles with radio and CD player |
DIAGNOSTIC ITEM 22: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY RADIO AND CD PLAYER < VEHICLES WITH RADIO AND CD PLAYER >. | |

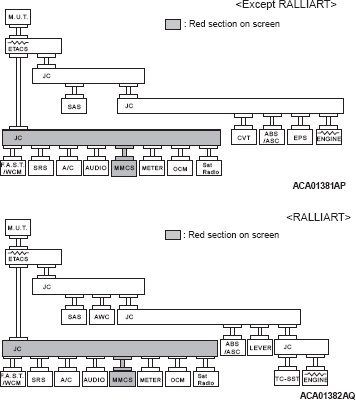

| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 23 Diagnose when the scan tool cannot receive the data sent by CAN box unit < vehicles with MMCS >. |
DIAGNOSTIC ITEM 23: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY CAN BOX UNIT < VEHICLES WITH MMCS >. | |

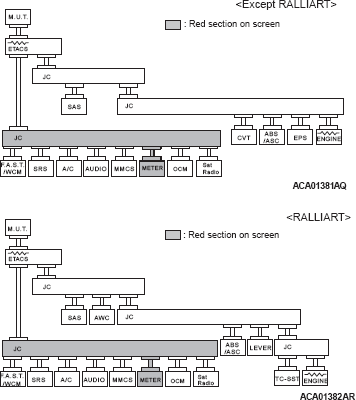

| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 24 Diagnose when the scan tool cannot receive the data sent by combination meter. |
DIAGNOSTIC ITEM 24: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY COMBINATION METER. | |

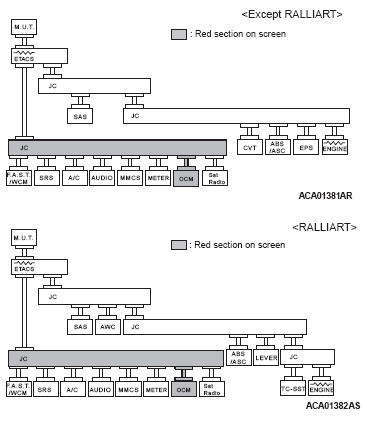

| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 25 Diagnose when the scan tool cannot receive the data sent by occupant classification-ECU. |
DIAGNOSTIC ITEM 25: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY OCCUPANT CLASSIFICATION-ECU. | |
| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 26 Diagnose when the scan tool cannot receive the data sent by satellite radio tuner < vehicles with satellite radio tuner >. |
DIAGNOSTIC ITEM 26: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY SATELLITE RADIO TUNER < VEHICLES WITH SATELLITE RADIO TUNER >. | |

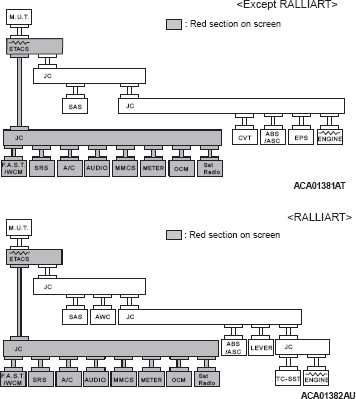

| CAN-B: A failure in the red section, or a bus-off failure is present in the gateway ECU. | Diagnostics Item 27 Short to power supply or ground in both CAN_H and CAN_L lines. |
DIAGNOSTIC ITEM 27: SHORT TO POWER SUPPLY OR GROUND IN BOTH CAN_H AND CAN_L LINES. | |

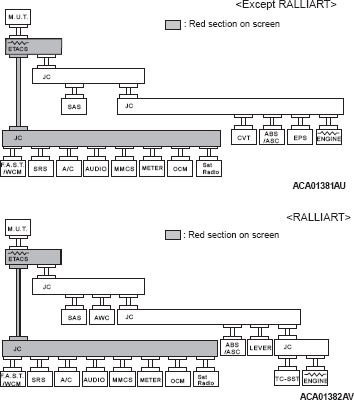

| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 28 Diagnose the ETACS-ECU, joint connector (CAN1) or lines between ETACS-ECU and joint connector (CAN1). |
DIAGNOSTIC ITEM 28: DIAGNOSE THE ETACS-ECU, JOINT CONNECTOR (CAN1) OR LINES BETWEEN ETACS-ECU AND JOINT CONNECTOR (CAN1). | |
| CAN-B: Disconnection in red displayed area is estimated. | Diagnostics Item 29 Short to power supply or ground, open circuit or line-to-line short in the CAN-B bus lines. |
DIAGNOSTIC ITEM 29: SHORT TO POWER SUPPLY OR GROUND, OPEN CIRCUIT OR LINE-TO-LINE SHORT IN THE CAN-B BUS LINES. |
