DIAGNOSTIC ITEM 16: Diagnose The Lines Between Joint Connector (CAN2) And Joint Connector (CAN3): Notes

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

Fig 1: CAN-C Communication Circuit Diagram (Except Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: CAN-C Communication Circuit Diagram (Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

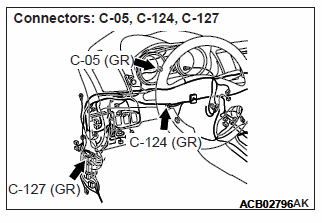

Fig 3: Locating Connectors C-05, C-124 & C-127

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
