DTC U1109: Column SW LIN Timeout: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

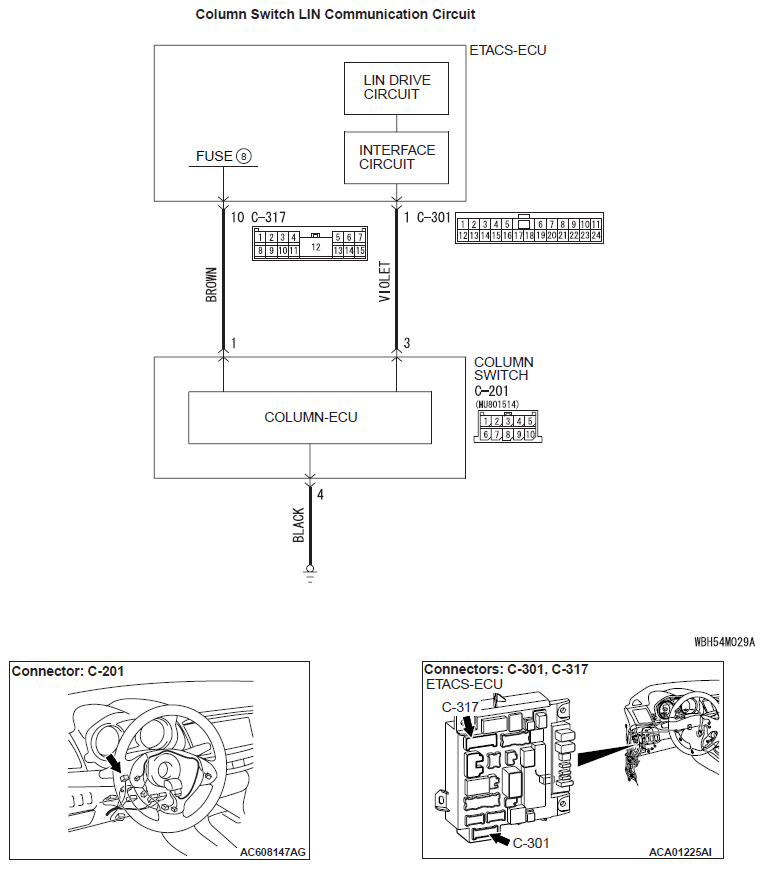

Fig 1: Column Switch LIN Communication Circuit Diagram
G07030605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
