DTC U1515: No-bus Activity Error (LIN): Notes

WARNING: This page is about a different variant/trim than selected.

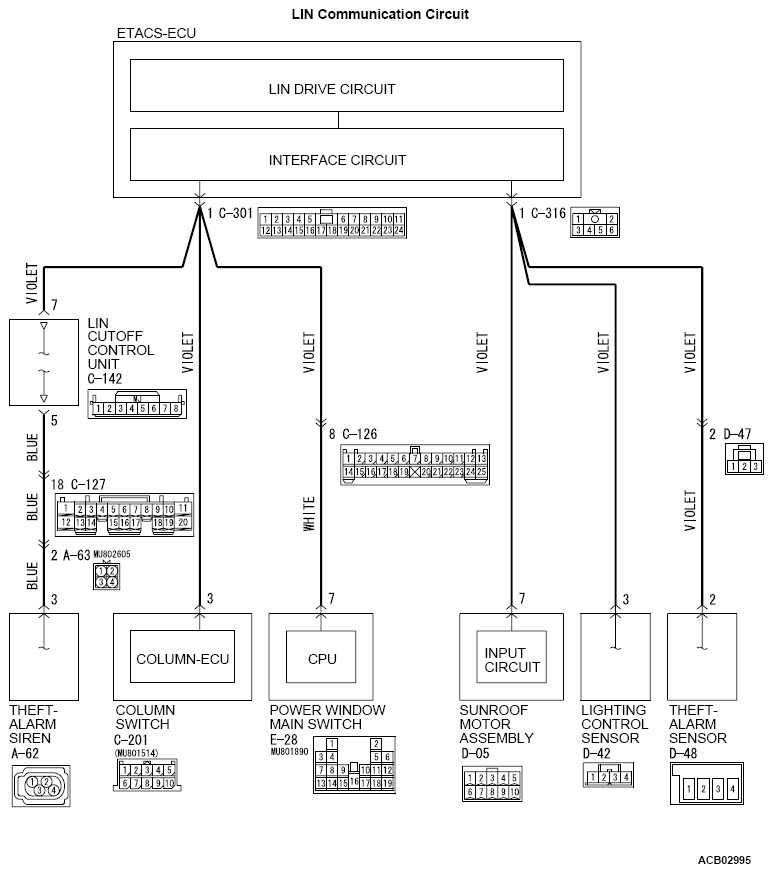

Fig 1: LIN Communication Circuit Diagram
G08296579Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

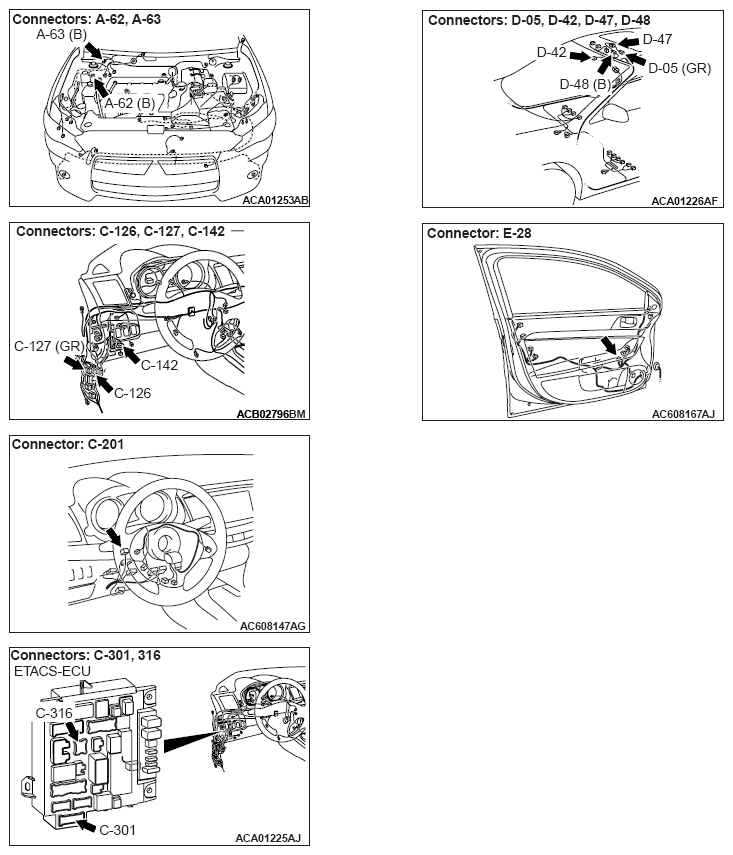

Fig 2: LIN Communication Circuit Connector Locations
G08296580Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
