Camera Setting

WARNING: This page is about a different variant/trim than selected.

Select "Camera Setting" on "Service" screen.

Fig 1: Display - Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Draw base lines 0.5 m (1.64 ft) behind the vehicle and width +0.4 m (1.31 ft) [+0.2 m (0.66 ft) each for right and left] and align the guideline over the base lines.

Fig 2: Display - Rear View Marker Setting
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

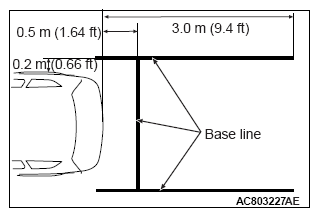

Fig 3: Identifying Base Lines Behind Vehicle
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
