Monitor Check

WARNING: This page is about a different variant/trim than selected.

Select "Monitor Check" on "Service" screen.

Fig 1: Display - Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Eight color bars will be displayed.

Fig 2: Display - Eight Color Bars
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the eight color bars are shown, gray scale will be displayed with a 16-step gradation.

Fig 3: Display - 16-Step Gradation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed while the gray scale is shown with a 16-step gradation, a crosshatch pattern will be displayed (Each cell should be square).

Fig 4: Display - Crosshatch Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the crosshatch pattern is shown, the screen will turn white.

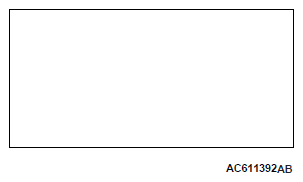

Fig 5: Display - White Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the screen is white, it will turn black.

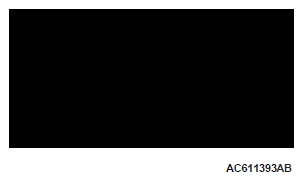

Fig 6: Display - Black Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the screen is black, the screen will turn red.

Fig 7: Display - Red Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the screen is red, it will turn green.

Fig 8: Display - Green Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the screen is green, it will turn blue.
When "Enter" is pressed on the navigation unit joystick while the screen is green, it will return to the "Service" screen.

Fig 9: Display - Blue Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
