Network/Connect Line Check

WARNING: This page is about a different variant/trim than selected.

Select "Network/Connect Line Check" on "Service" screen.

Fig 1: Display - Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A network and connect line check will be initiated. The "Network/Connect Line Check" screen will display how the check is in progress.

Fig 2: Display - Network/Connect Line Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the network and connect line check is finished, the screen will change to "Network/Connect Line Result" to show the check results.

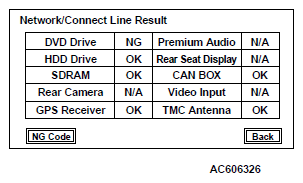

Fig 3: Display - Network/Connect Line Result
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If there is "NG" or "N/A" as the check results, select "NG Code" on the "Network/Connect Line Result" screen. Then "NG code Indication" screen will show the NG code.
If "Back" is selected on "Network/Connect Line Result", the screen will return to "Service" screen.

Fig 4: Display - NG Code Indication
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
