Speaker Check

WARNING: This page is about a different variant/trim than selected.

Select "Speaker Check" on "Service" screen.

Fig 1: Display - Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select a speaker to be checked, and play test tone through the speaker.
NOTE:
- [FTWL] front tweeter (LH), [FTWR] front tweeter (RH) and [RW] subwoofer are not displayed for vehicles with 6 speakers.
- By operating the volume key, the volume can be changed.
- During the test, only the selected speaker sounds. If "Back" is selected during the test, the test tone will disappear.

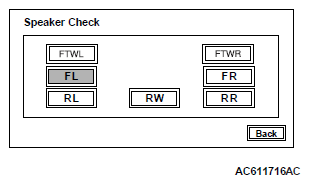

Fig 2: Display - Speaker Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
