Intermittent Washer And Wiping: Notes

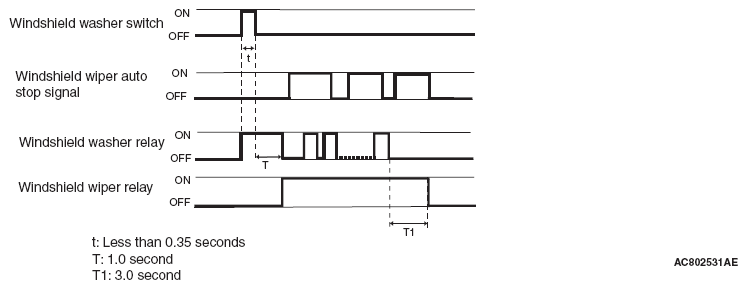

Fig 1: Intermittent Washer And Wiping ON/OFF Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The intermittent washer and wiping operate as follows:

1. Turn on the windshield washer switch for less than 0.35 second.
2. The windshield washer operates for 0.5 seconds.
3. The windshield washer operates intermittently 4 to 6 times, and the windshield wipers operate, linked with the windshield washer operation.
4. The windshield wipers operate for 3 seconds.
   NOTE:

   • If the windshield washer switch is turned ON for less than 0.35 second when the windshield washer is injecting washer fluid for 0.5 seconds and when the windshield washer is injecting washer fluid intermittently 4 to 6 times, the intermittent washer and wiping will stop.
   • If the windshield washer switch is turned ON for less than 0.35 second when the windshield wipers are operating for 3 seconds, the windshield washer operates intermittently 4 to 6 times again.
