INSPECTION PROCEDURE 2: The Windshield Wipers Do Not Work When The Wiper Switch Is At The "INT", "Washer" Or "Mist" Position. However, The Wipers Work At Low Speed When The Switch Is At The "Lo" Or "Hi" Position: Notes

WARNING: This page is about a different variant/trim than selected.

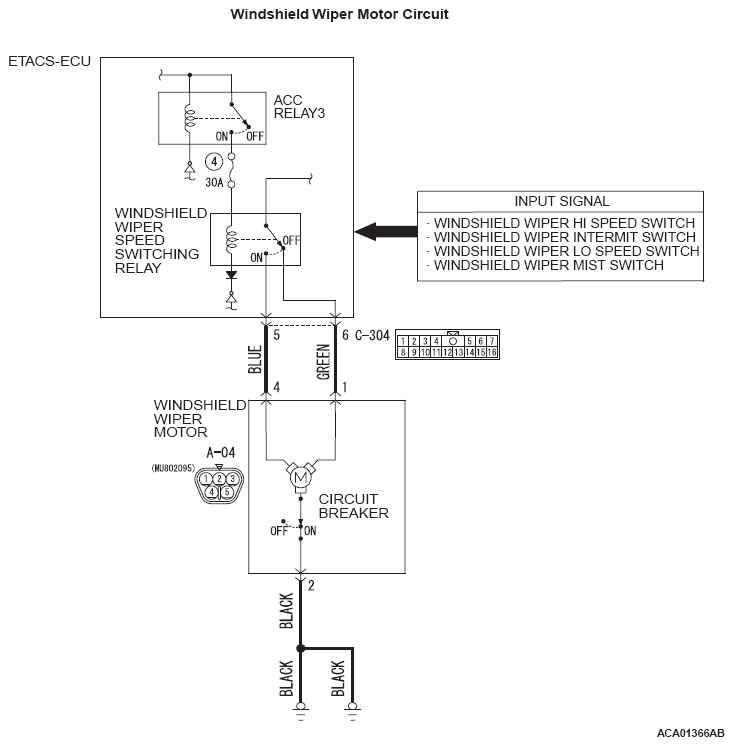

Fig 1: Windshield Wiper Motor - Circuit Diagram
G07034358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
