INSPECTION PROCEDURE 4: Windshield Wipers Do Not Work Normally: Notes

WARNING: This page is about a different variant/trim than selected.

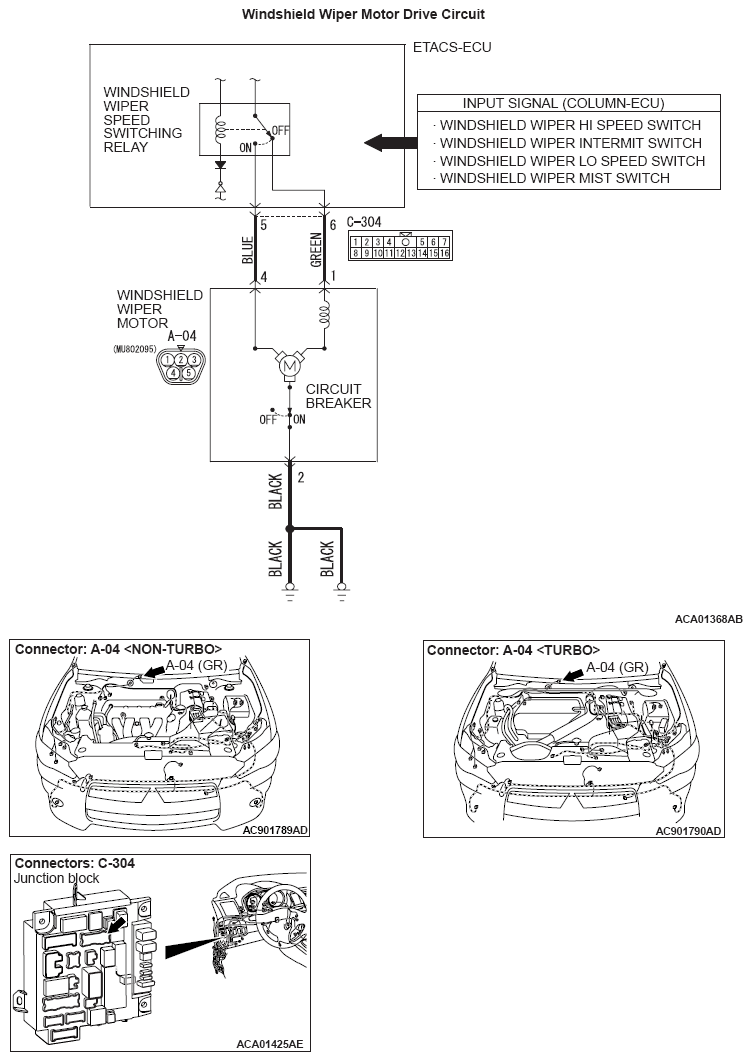

Fig 1: Windshield Wiper Motor Drive - Circuit Diagram
G08294897Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
