Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

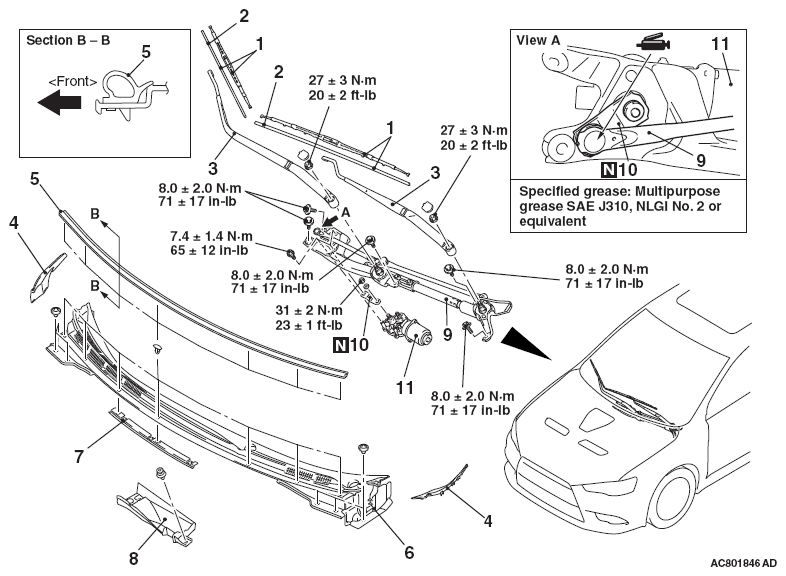

Fig 1: Windshield Wiper Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

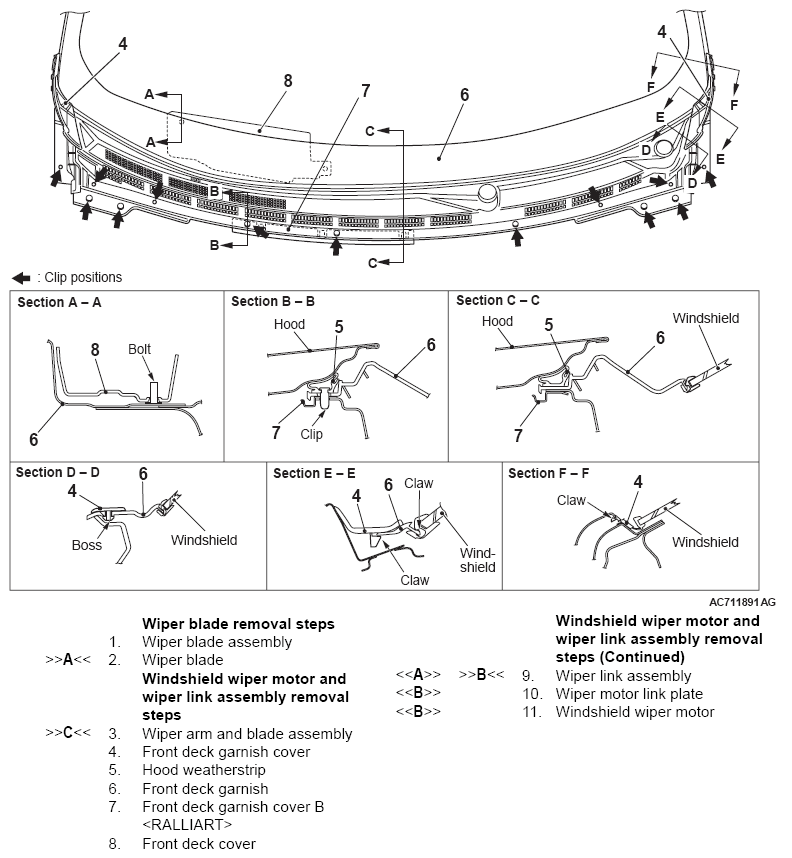

Fig 2: Identifying Windshield Wiper Clip Positions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
For removal and installation of the wiper and washer switch, refer to
COLUMN SWITCH
.
