USB Adapter Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the USB adapter. (Refer to USB ADAPTER REMOVAL AND INSTALLATION )

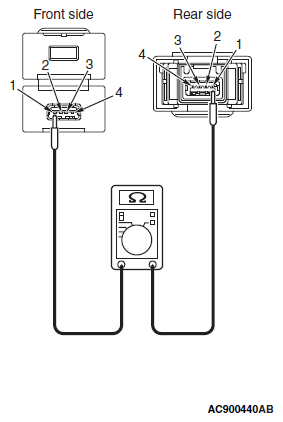

- Check that the continuity exists between the front side terminals of USB adapter and rear side terminals of USB adapter.Fig 1: Checking Continuity Exists Between Front Side Terminals Of USB Adapter And Rear Side Terminals Of USB Adapter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
USB ADAPTER VALUESFront side terminal Rear side terminal Measurement value 1 1 Continuity exists (2 Ω or less) 2 2 3 3 4 4
