Receiver Antenna Module

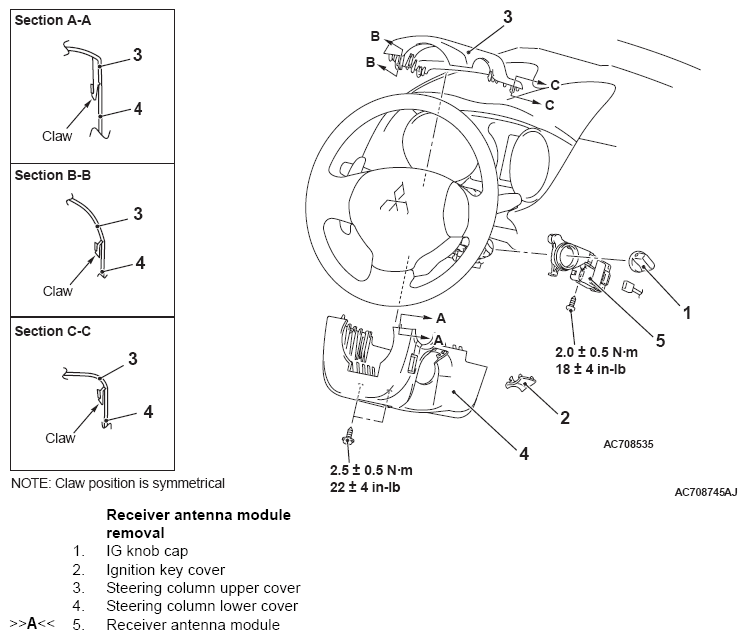

Fig 1: Receiver Antenna Module Replacement Components With Torque Specifications
G08294733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
